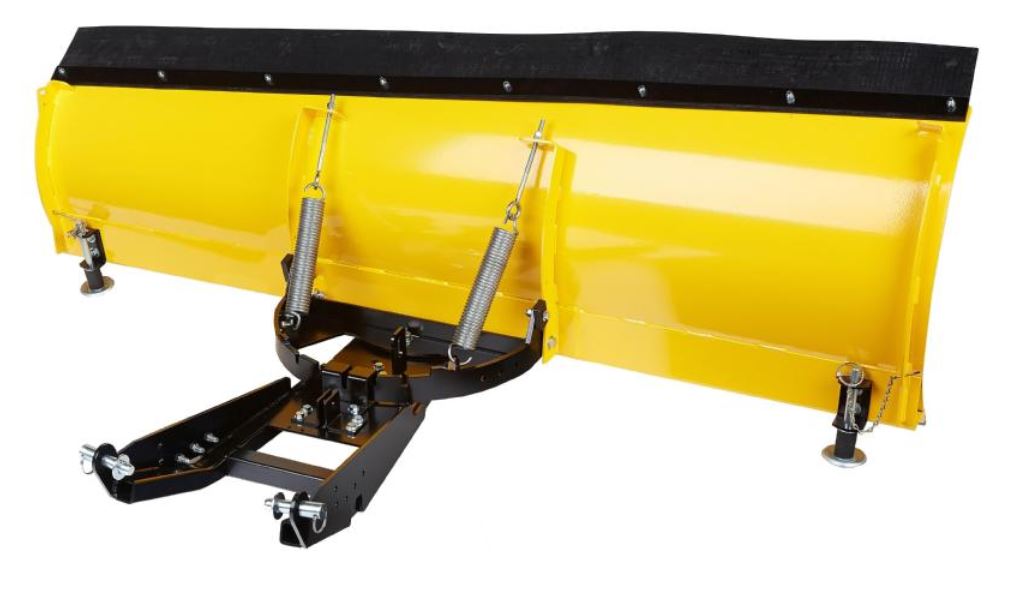

72 Inch Denali Pro Series Snow Plow Kit - Kubota RTV 400 | 500 | 900 | 1100
Item #: or-1049
Brand: Denali
In Stock
- Description
- Specifications
- Product Videos
- Reviews
NOTES:
- Must have a winch to use plow system.
- Does NOT fit Kubota RTV500, RTV900 or RTV1100 with a 2" front receiver hitch installed.
Applicability: Fits
Kit Includes:
- Must have a winch to use plow system.
- Does NOT fit Kubota RTV500, RTV900 or RTV1100 with a 2" front receiver hitch installed.
Applicability: Fits
- 2004-09 Kubota RTV 900 with 1-1/4" front hitch
- 2011-12 Kubota RTV 900 with new style rectangle tube bumper
- 2008-10 Kubota RTV 1100 with 1-1/4" front hitch
- 2011-12 Kubota RTV 1100 with new style rectangle tube bumper
- 2013-22 Kubota RTV 500 / 900 / 1100 with 1-1/4" front hitch
Kit Includes:
- Blade
- Push tube
- Model specific plow mount
Blade Specifications:
Push Tube Specifications:
Plow Mount Specifications:
- U.S.A. made
- County-style blade with curved design made of 12 gauge steel
- Impact resistant reinforcement system disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact
- Includes edge stiffeners and stabilizer bar
- Sand blasted, powder coated with epoxy primer and TGIC polyester top coat for corrosion protection, UV resistance and durability

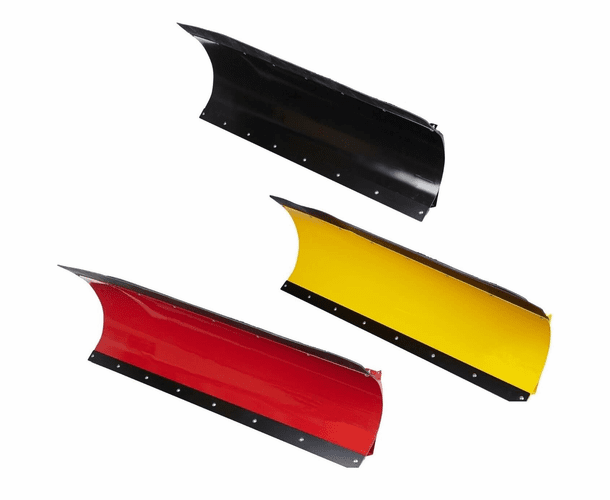

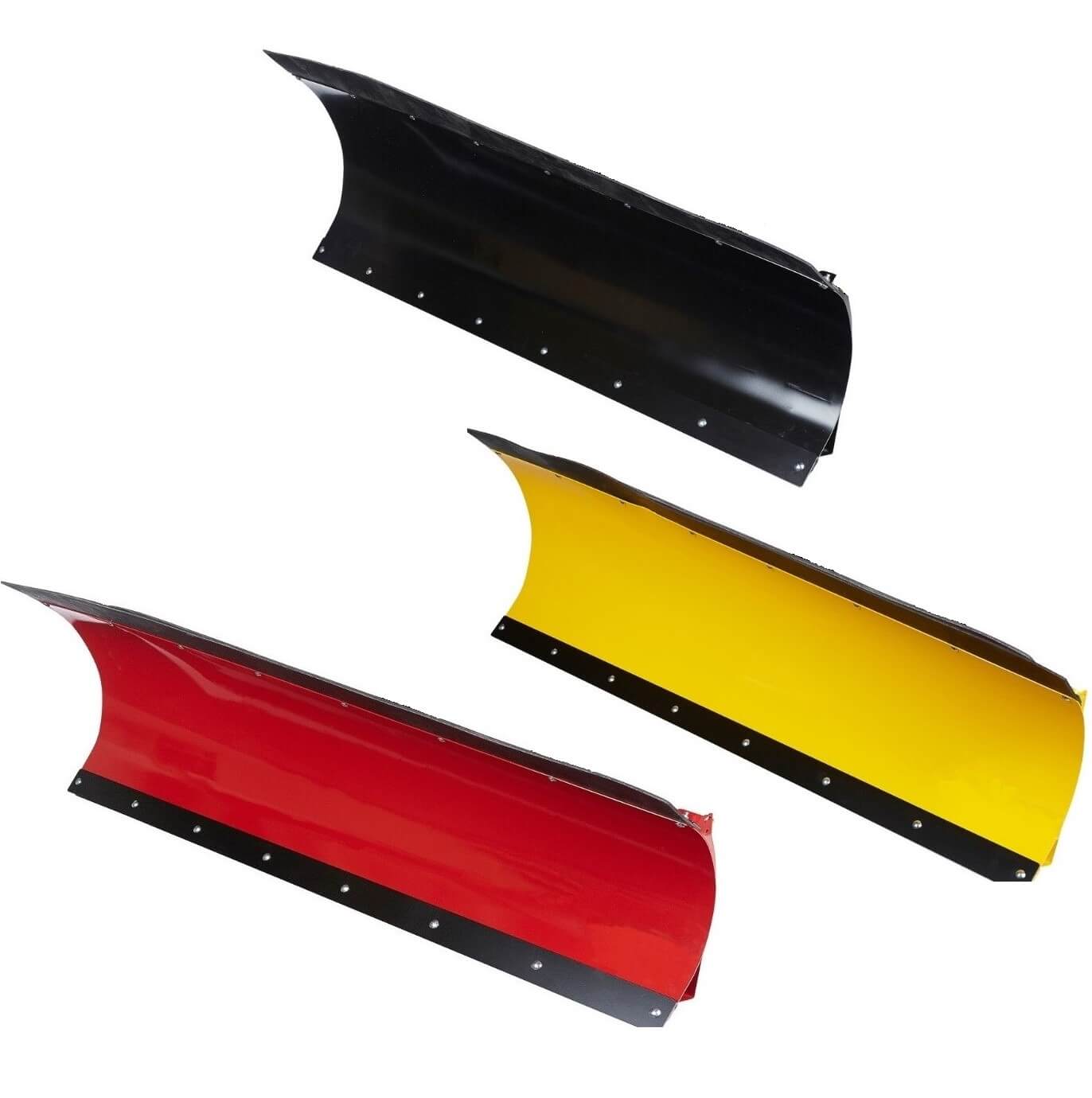

- Available in black, red or yellow
- High strength, high yield 3/16 inch thick grade 50 steel wear bar
- Angle blade is 23 inches on the tallest side and 16 inches on the shortest side
- Rubber flap stabilizer bar with upgraded (stiffer) rubber flap
- Plow markers included
- Height and angle adjustable premium steel skid feet
- Includes 3 year warranty on the plow blade against manufacturer defects

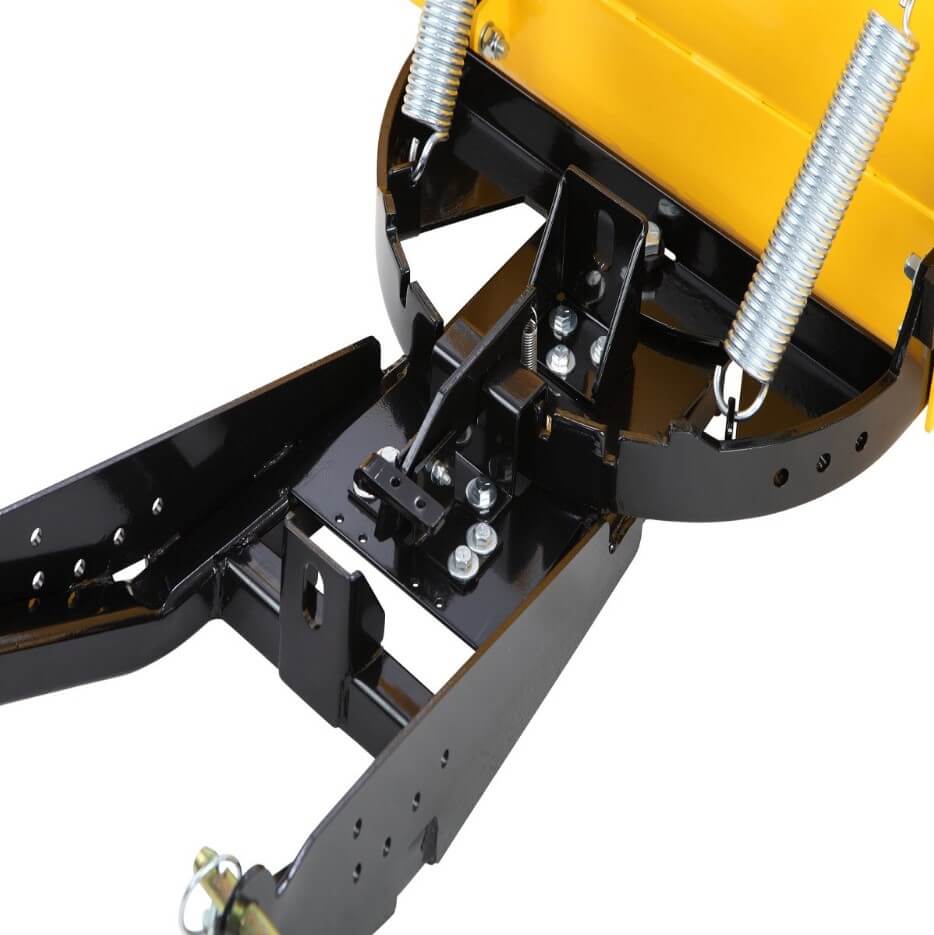

Push Tube Specifications:
- Impact resistant reinforced pivot assembly
- Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees, 12.5 degrees and 25 degrees
- Simple detachment systems with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity

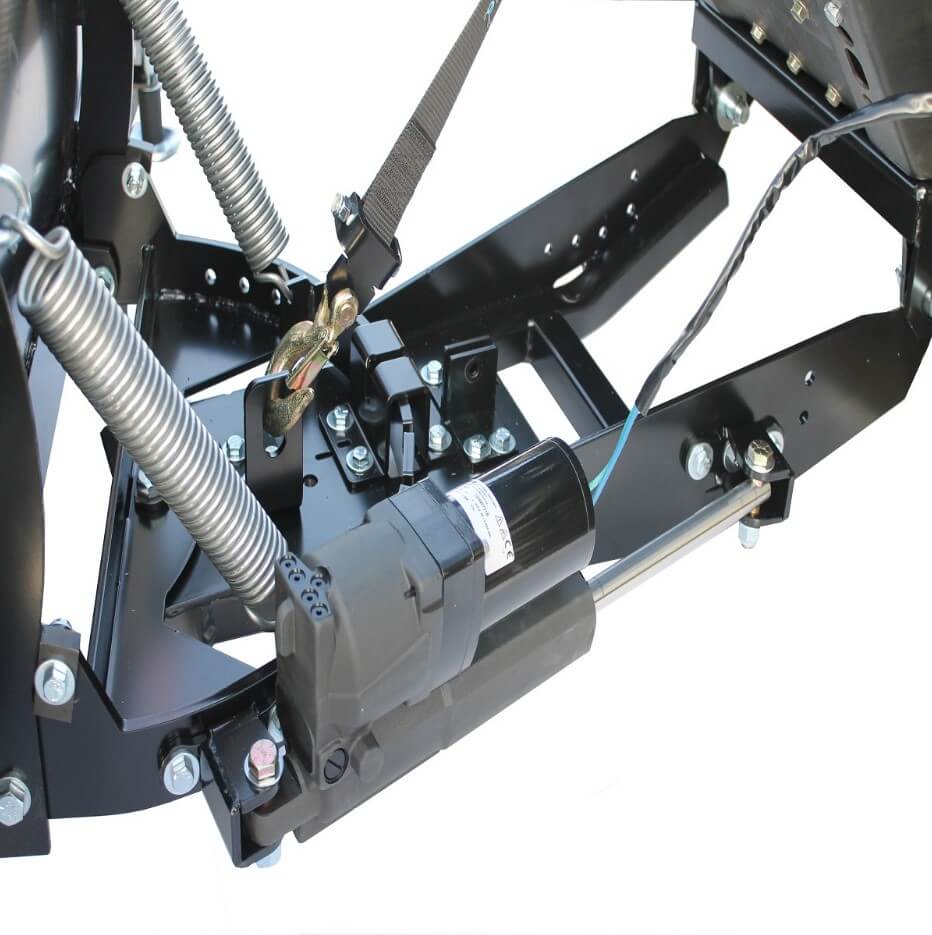

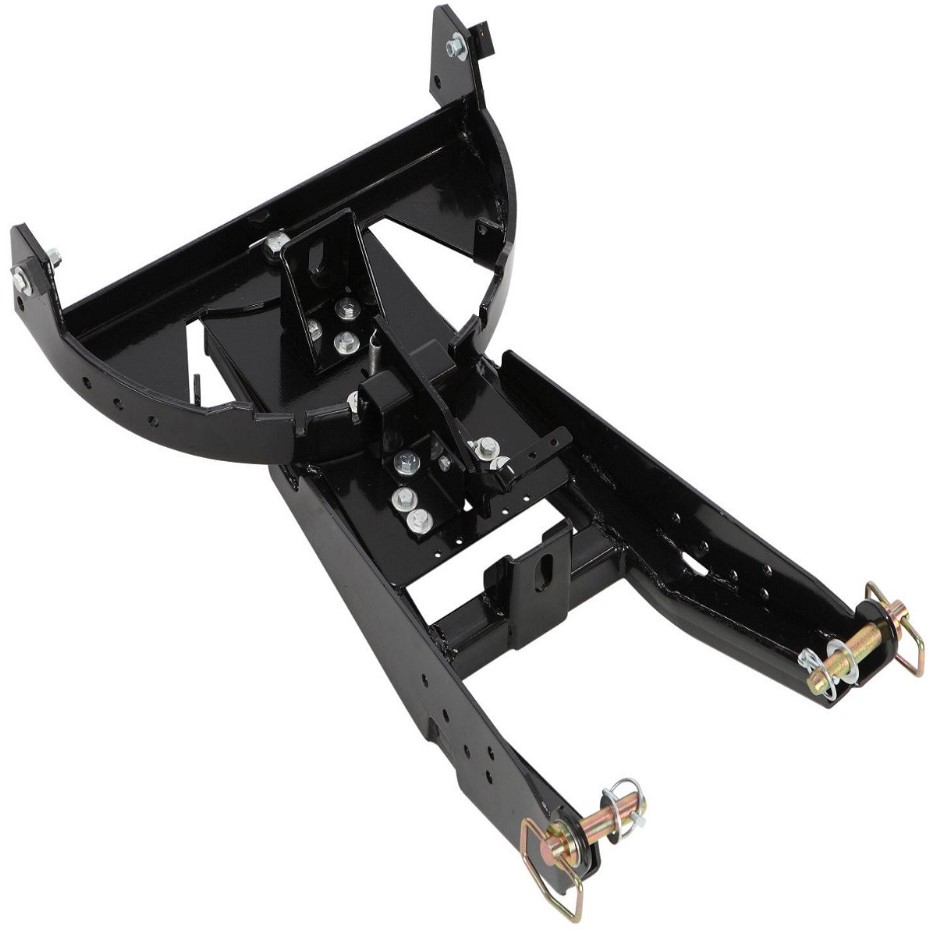

Plow Mount Specifications:
- Front mount
- 100% laser cut 1/4 inch steel
- Slotted holes allow blade to hug the ground
