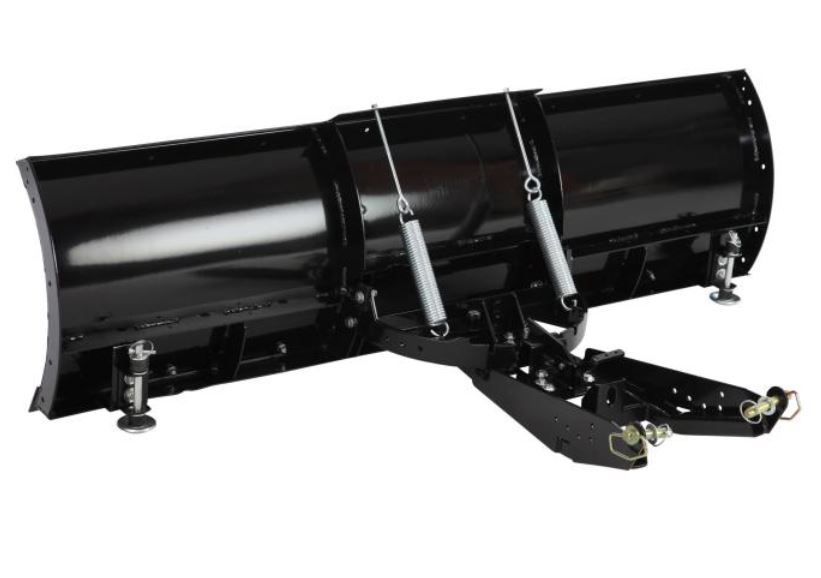

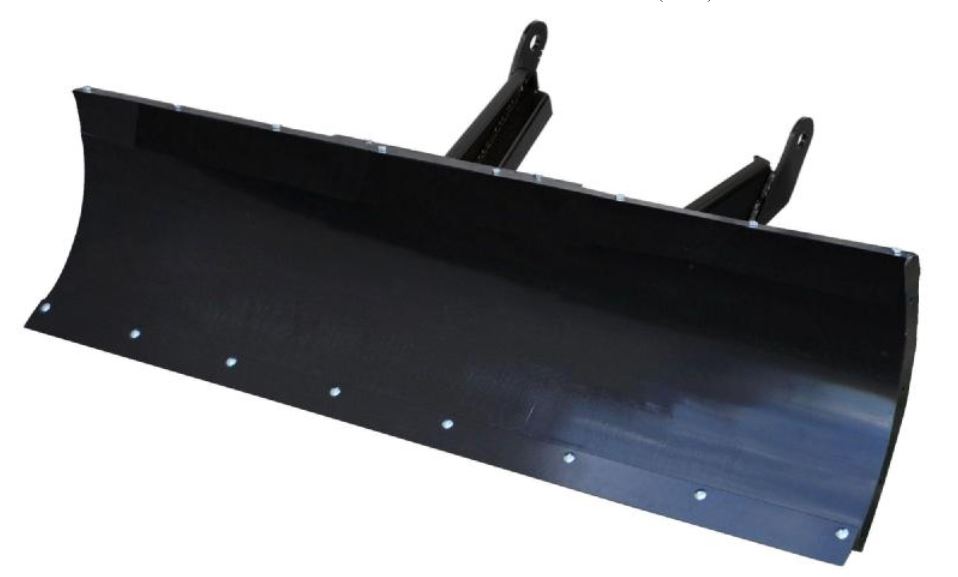

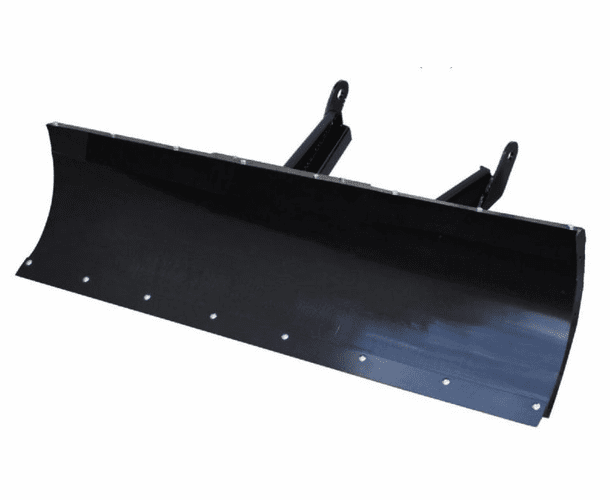

60 Inch Denali Standard Series Snow Plow Kit - Kubota w| 2 Inch Front Receiver
Item #: or3-MA11770
Brand: Denali
In Stock
- Description
- Specifications
- Reviews
NOTES:
- Must have a winch to use plow system.
- Most holes on 2" receivers are 5/8" in diameter. Depending on the hole size in your hitch, drilling larger holes or using different hitch pins may be necessary.
Applicability: Fits all Kubota RTV's with a 2" front receiver hitch installed
Kit Includes:
- Must have a winch to use plow system.
- Most holes on 2" receivers are 5/8" in diameter. Depending on the hole size in your hitch, drilling larger holes or using different hitch pins may be necessary.
Applicability: Fits all Kubota RTV's with a 2" front receiver hitch installed
Kit Includes:
- Blade
- Push tube
- Model specific plow mount

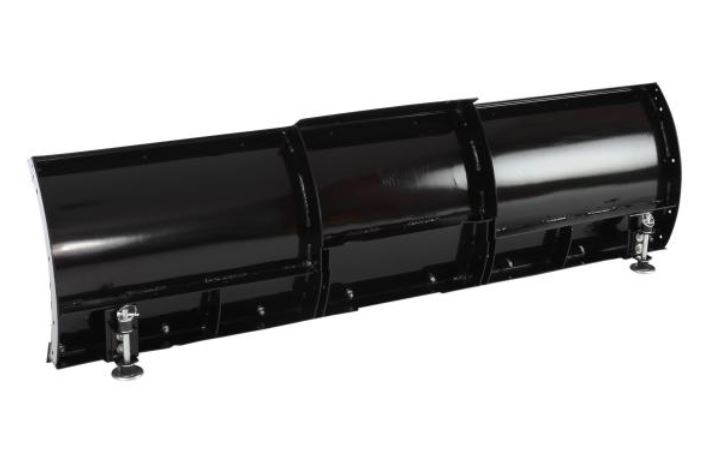

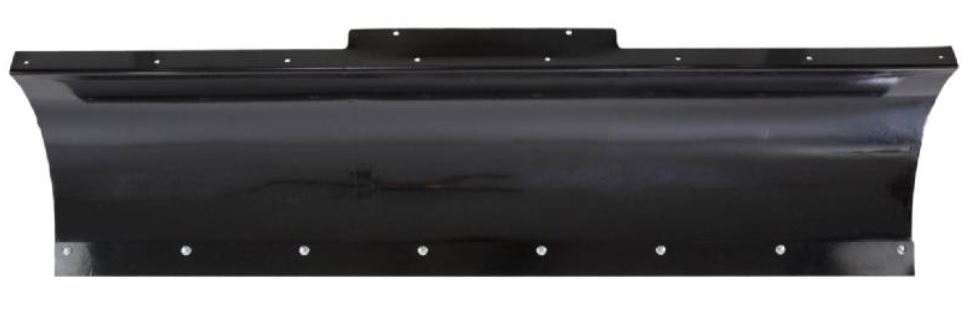

Blade Specifications:
Push Tube Specifications:
Plow Mount Specifications:
- 19" scoop
- 11 gauge steel leading horizontal supports
- Four 7 gauge ribs run the full length of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65 degree attack angle and over center design ensures snow rolls up and is thrown forward
- Replaceable 7 gauge, grade 50 steel wear bar
- Height and angle adjustable skid feet included
- Center mounted plow disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact
- 3 year warranty

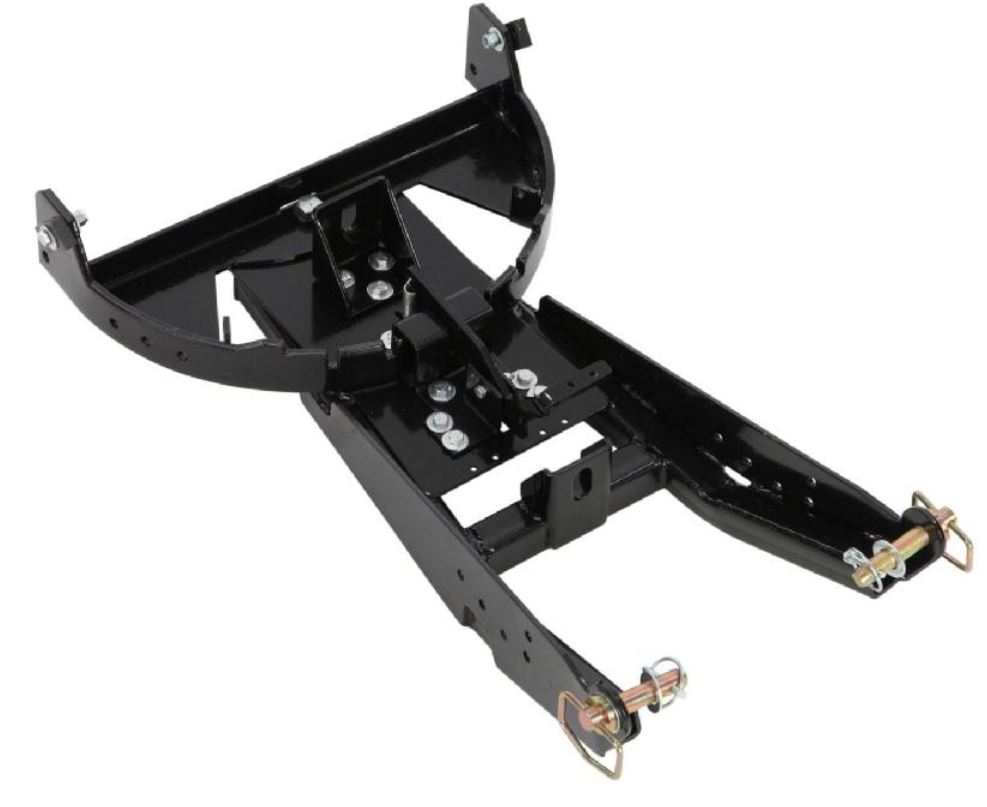

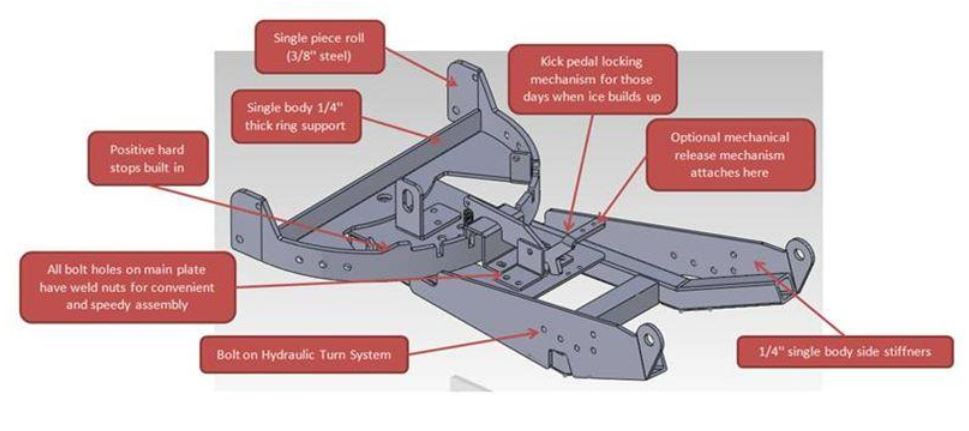

Push Tube Specifications:

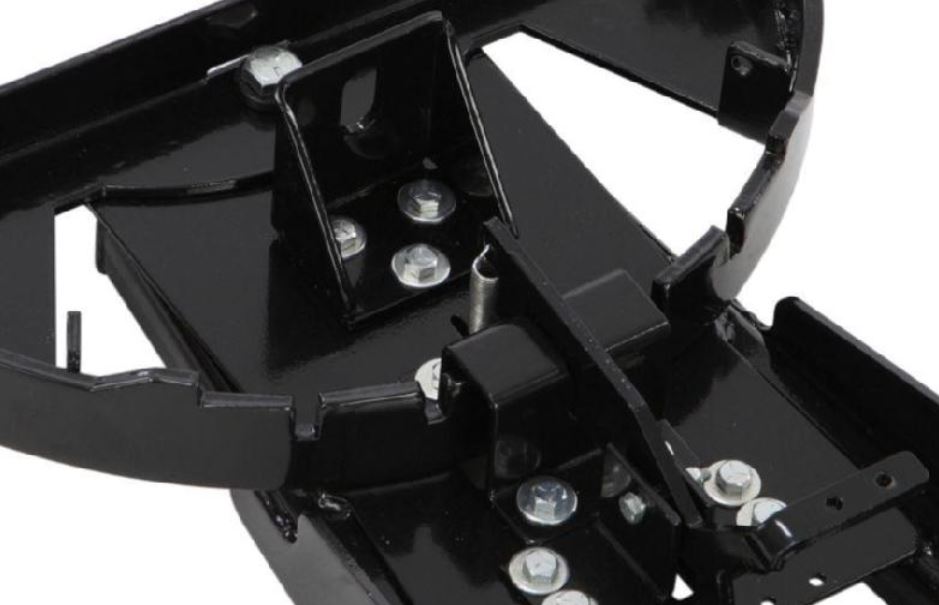

- Impact resistant reinforced pivot assembly
- Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees, 12.5 degrees and 25 degrees
- Simple detachment systems with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity

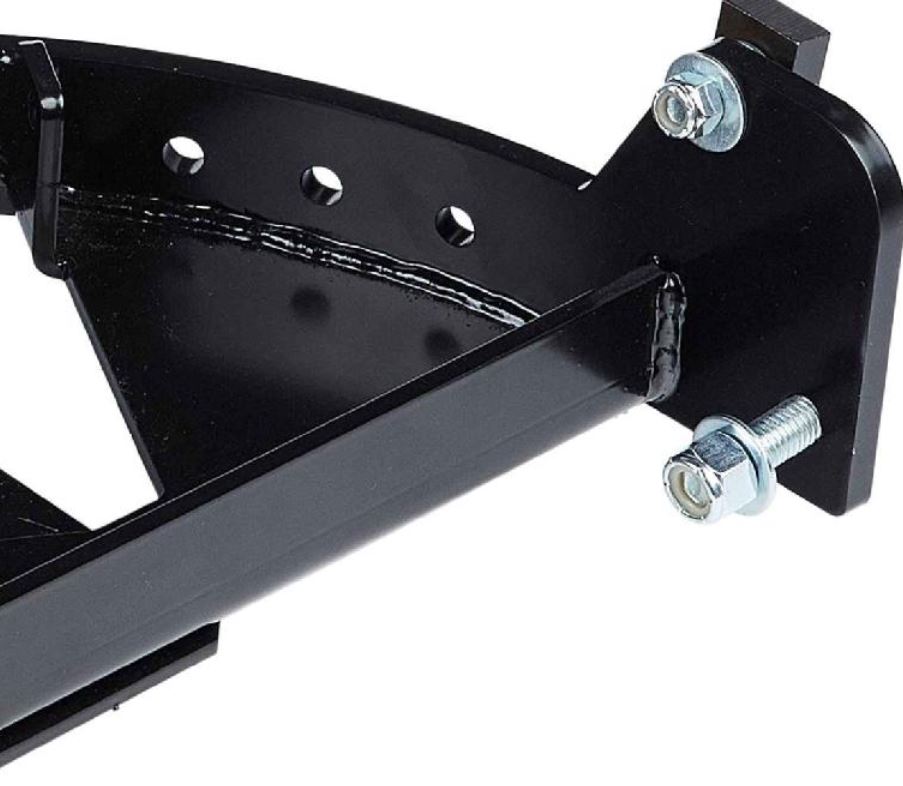

Plow Mount Specifications:
- Front mount
- 100% laser cut 1/4 inch steel
- Slotted holes allow blade to hug the ground
