66 Inch Denali Standard Series Snow Plow Kit - Can-Am Maverick X3

DescriptionNOTES:
- Requires the winch mount MA11949 to use plow system.
- Must have a winch to use plow system.


Applicability: 2017-21 Can Am Maverick X3 and Maverick X3 Max


Kit Includes:

• Blade
• Push tube
• Model specific plow mount

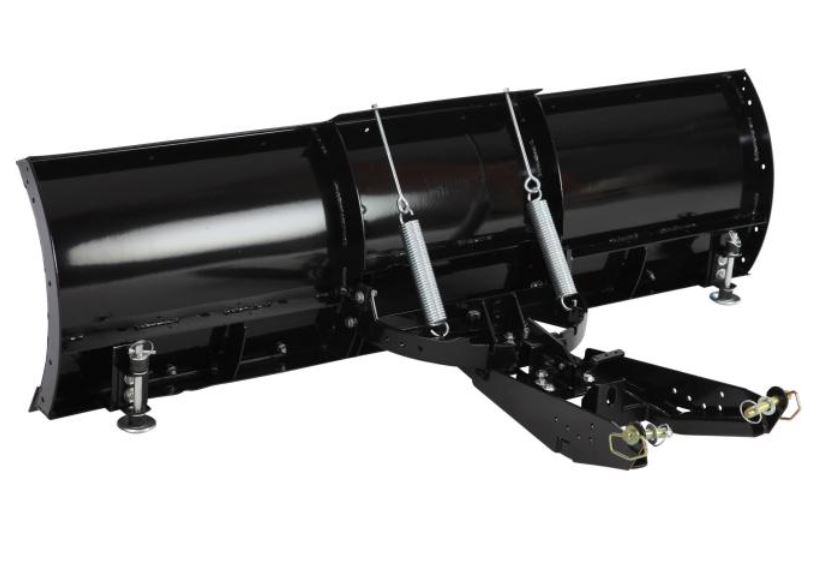

The DENALI Standard UTV Plow by MotoAlliance is made to handle the toughest conditions including sand, snow, and ice. The "Easy-Connect" design created by the MotoAlliance engineers will make attaching and detaching your plow an extremely easy process. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact.

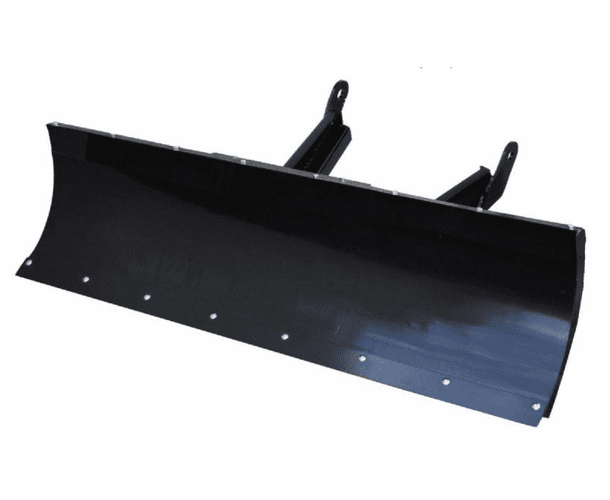

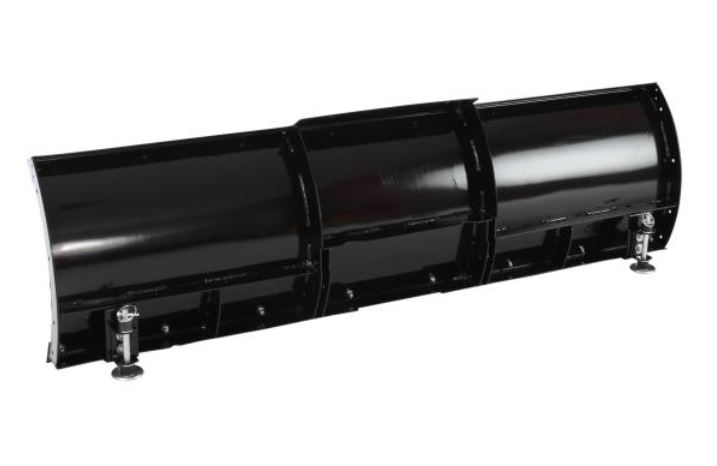

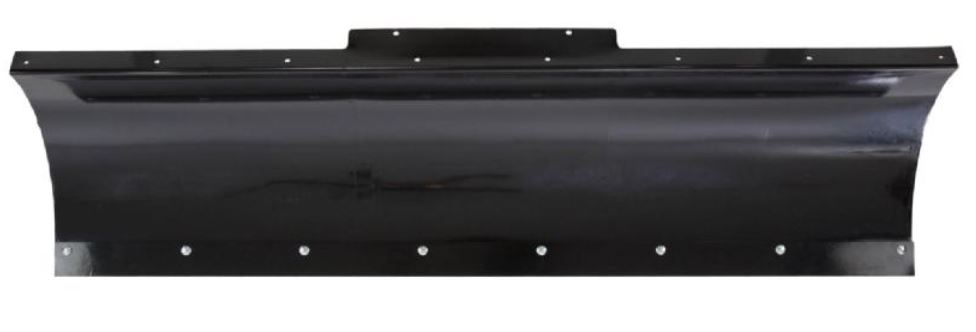

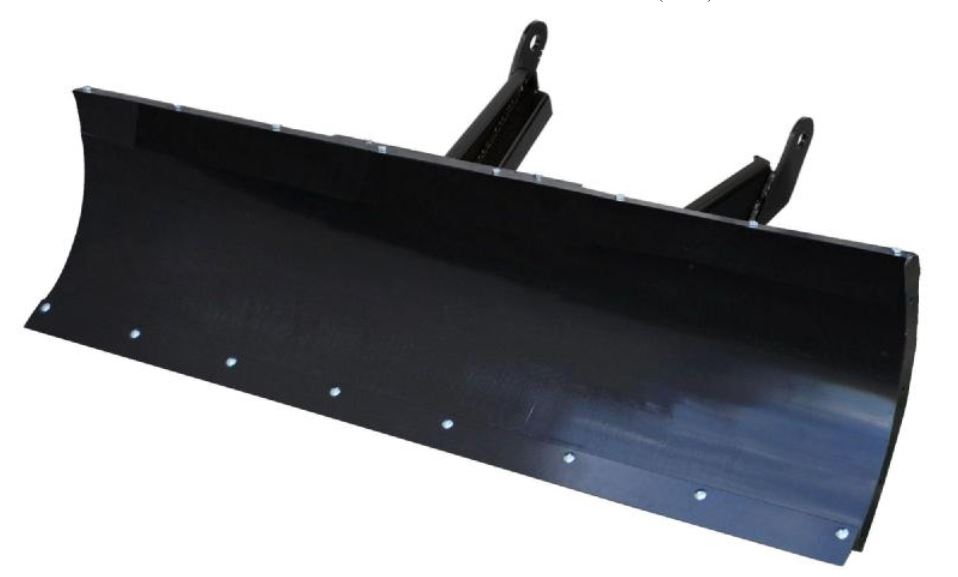

SpecificationsBlade Specifications:

• 19" scoop

• 11 gauge steel leading horizontal supports

• Four 7 gauge ribs run the full length of the blade

• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade

• 65 degree attack angle and over center design ensures snow rolls up and is thrown forward

• Replaceable 7 gauge, grade 50 steel wear bar

• Height and angle adjustable skid feet included

• Center mounted plow disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact

• 3 year warranty

Push Tube Specifications:

• Impact resistant reinforced pivot assembly

• Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees, 12.5 degrees and 25 degrees

• Simple detachment systems with the pull of a pin

• Structural tube steel cross bar for added lateral rigidity

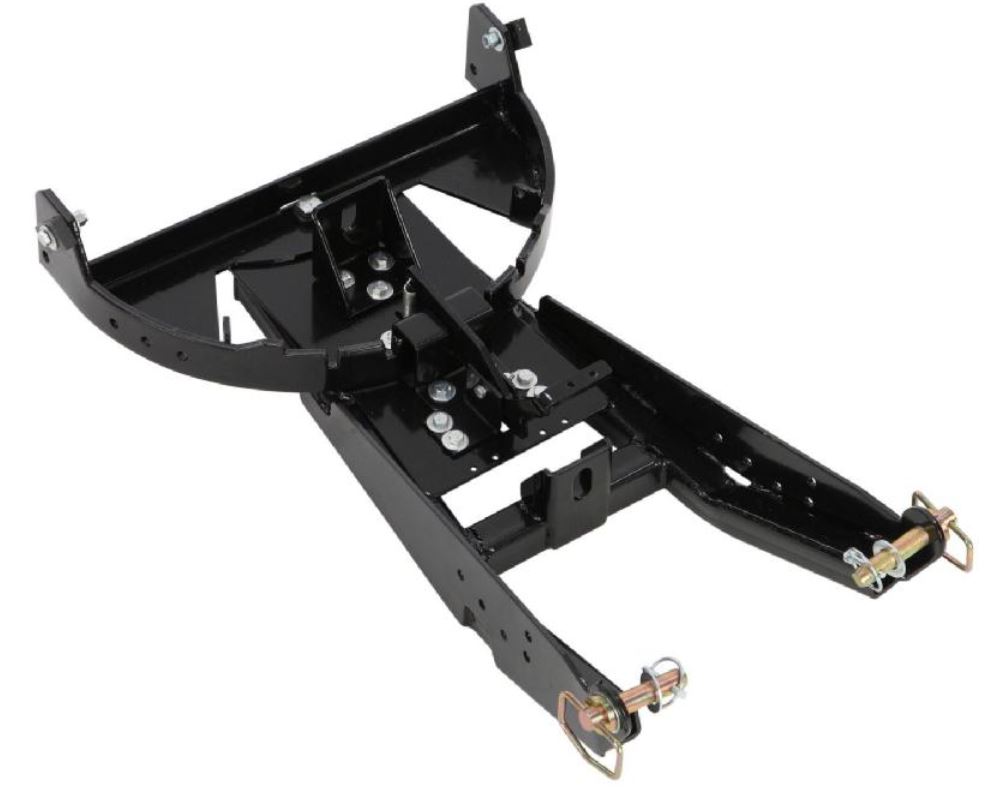

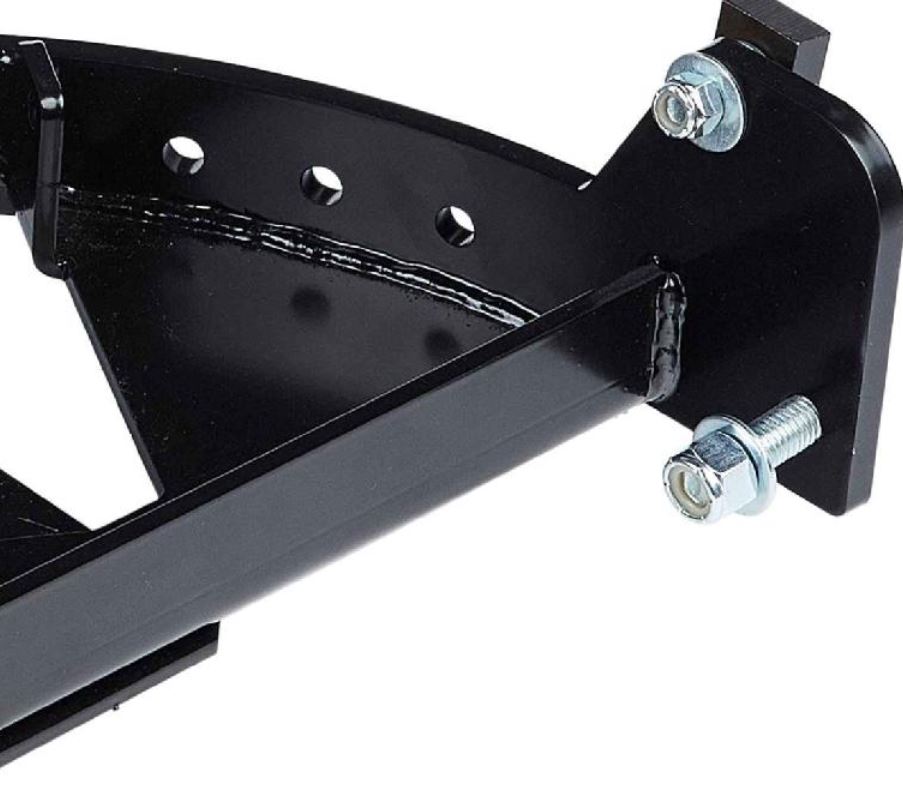

Plow Mount Specifications:

• Front mount
• 100% laser cut 1/4 inch steel

• Slotted holes allow blade to hug the ground
