High Lifter Dual Idler 4 Inch Portal Gear Lift - 2015-23 Polaris RZR XP 1000 | XP Turbo | S 1000 | 900 | S 900
Item #: or-2724
Brand: High Lifter
In Stock
- Description
- Specifications
- Installation Guides
- Reviews
NOTES:
- Ships UPS ground in multiple boxes.
- Requires 14 inch or larger wheels.
- 14 inch factory wheels require 1 inch wheel spacers.
- 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.
Applicability: Fits
- Ships UPS ground in multiple boxes.
- Requires 14 inch or larger wheels.
- 14 inch factory wheels require 1 inch wheel spacers.
- 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.
Applicability: Fits
- 2015-23 Polaris RZR XP 1000 / RZR XP Turbo / RZR XP 4 1000 / RZR XP 4 Turbo
- 2015-20 Polaris RZR 900 / RZR 900 XC / RZR S 900 / RZR RZR 4 900 and RZR S 4 900
- 2016-20 Polaris RZR S 1000 and RZR S 4 1000
Features:
Gear Box Features:
Gasket and Seal Features:
Backing Plate Features:
Rotor Features:
Gear Features:

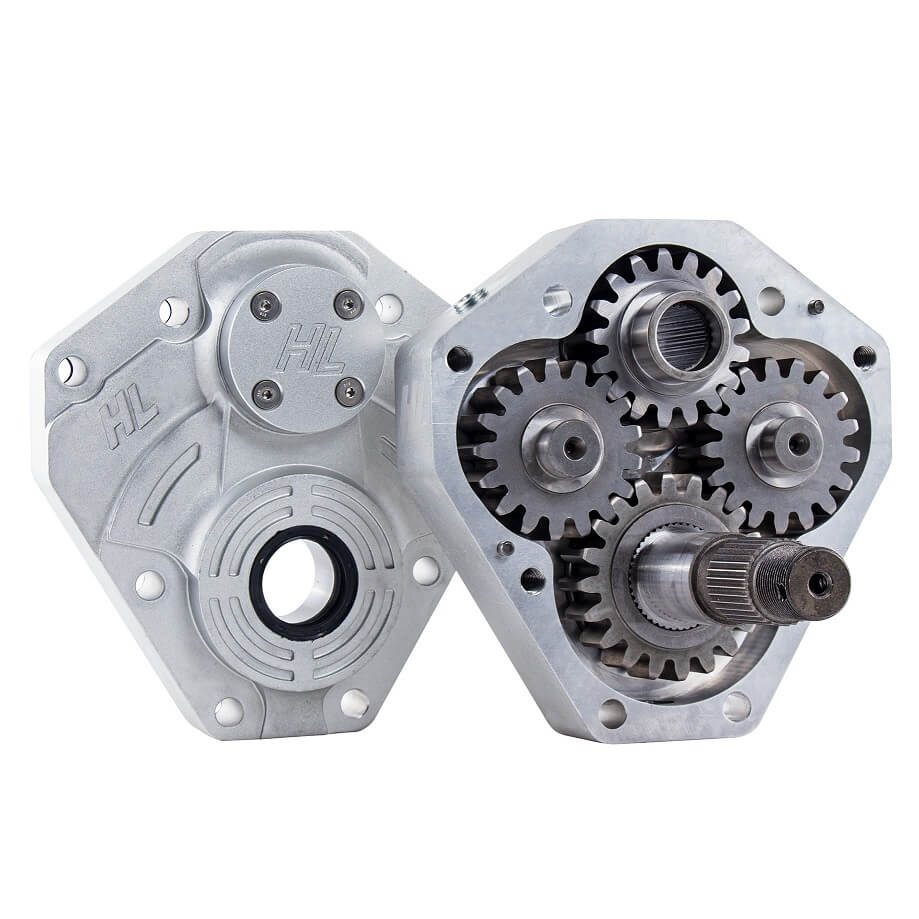

- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
- More reliable torque transfer
- 15% or 30% gearing extends brake life by needing brakes less often due to greatly improved engine braking

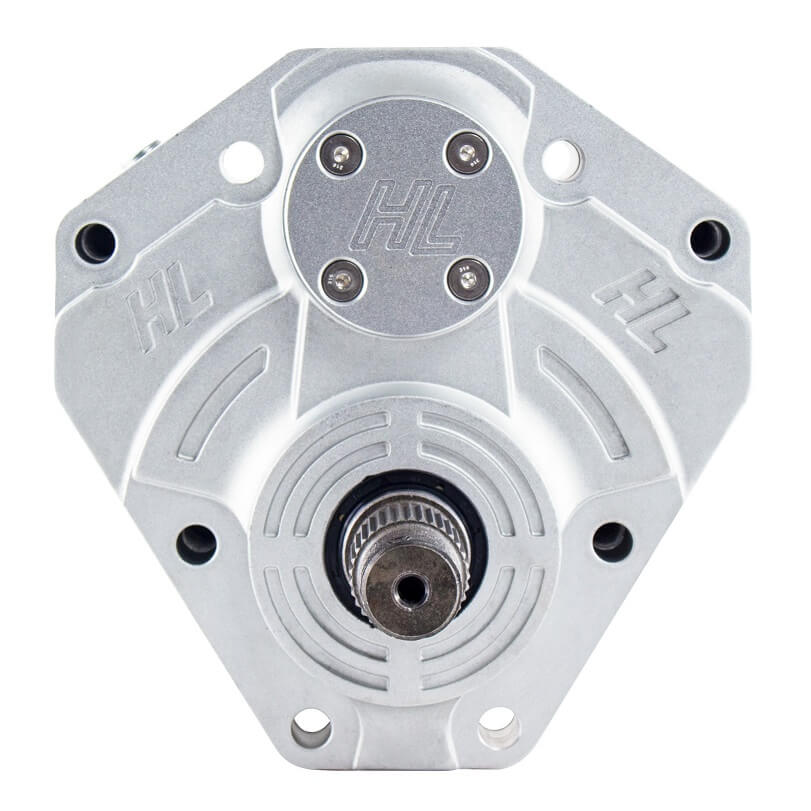

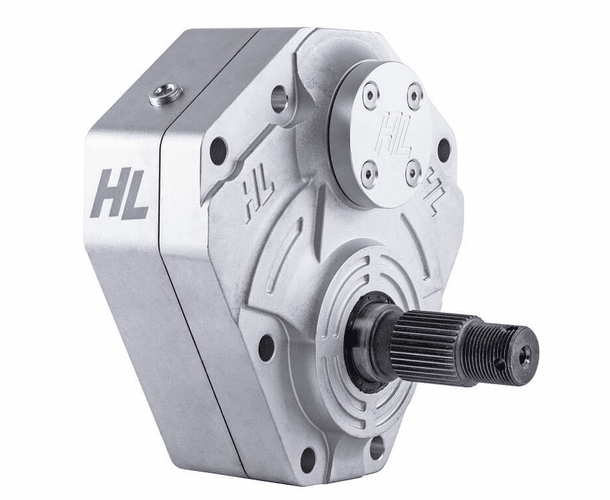

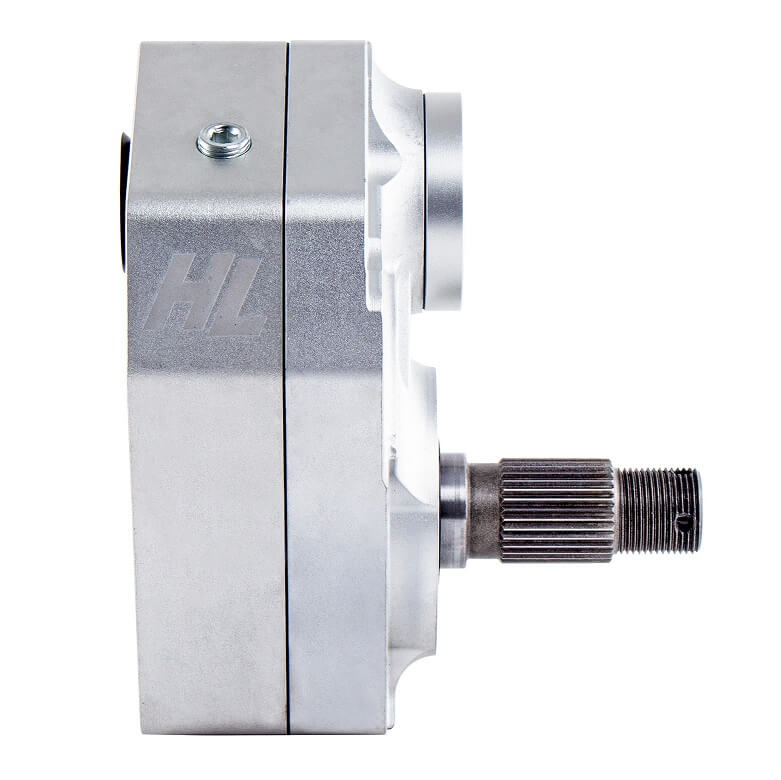

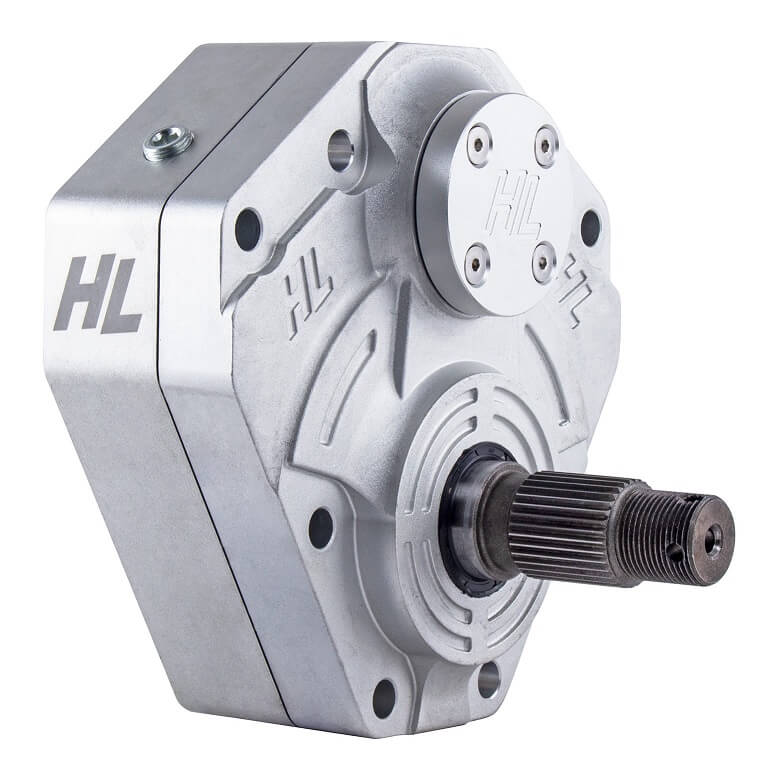

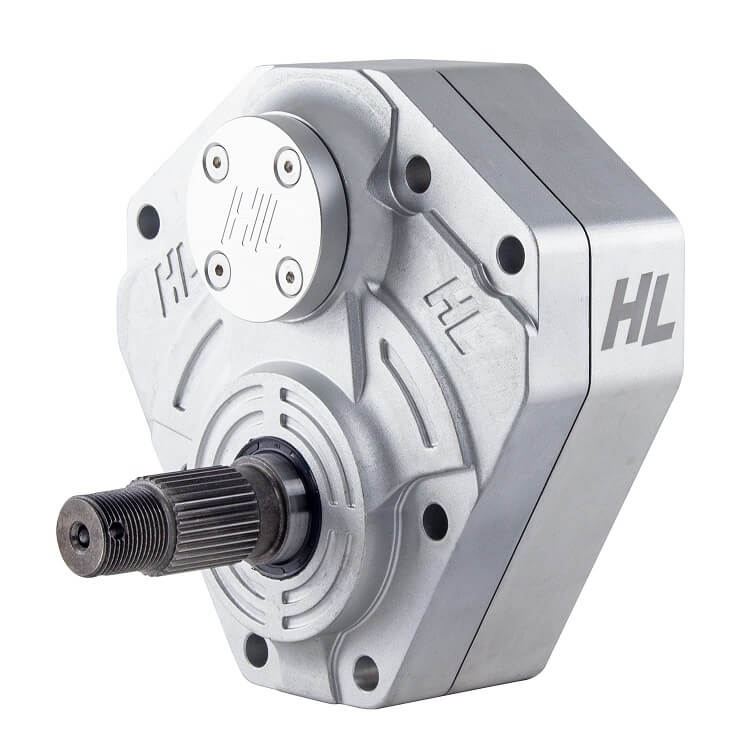

Gear Box Features:
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Extremely robust and give you more worry-free miles
- Offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket and Seal Features:
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Creep resistant plus oil and coolant resistant
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks

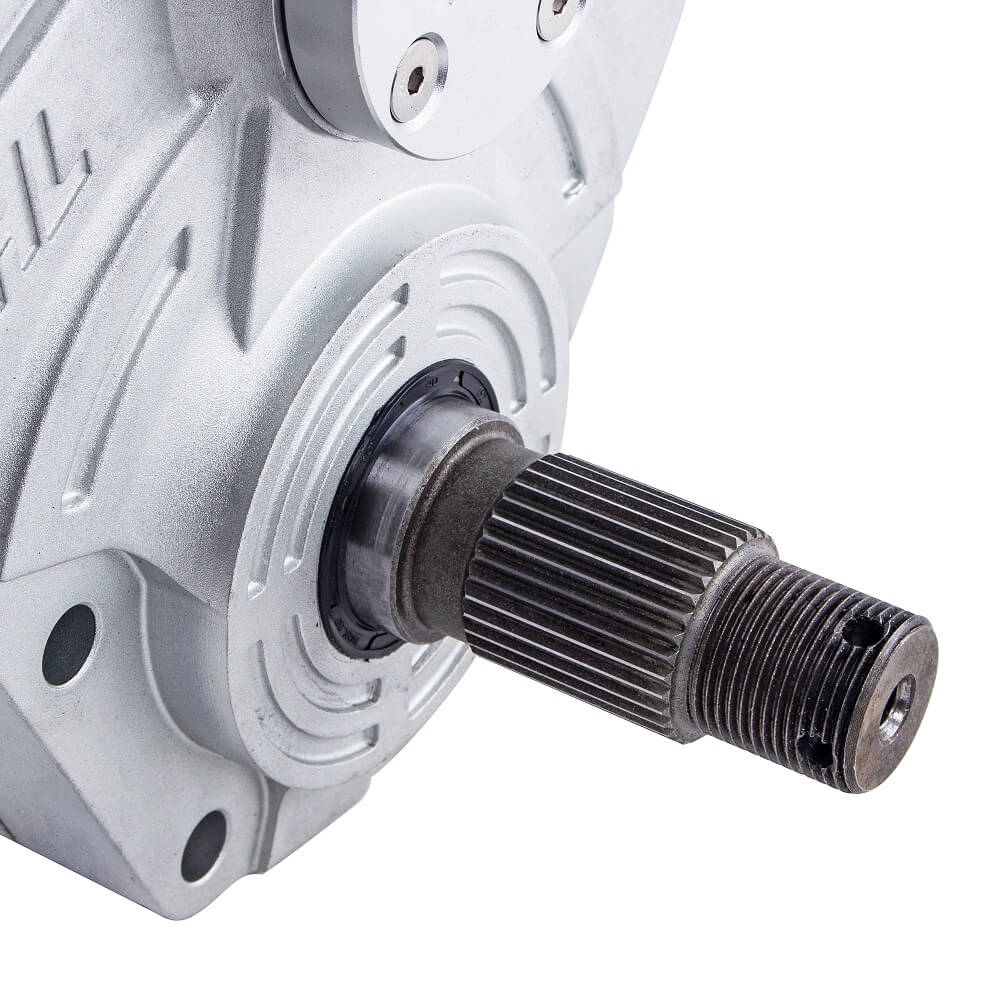

- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

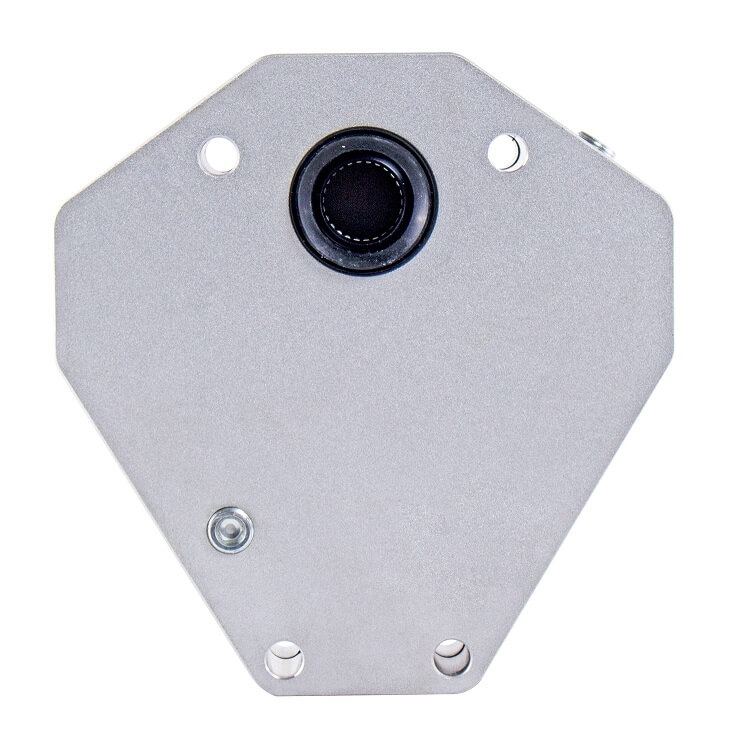

Backing Plate Features:
- Strongest backing plates on the market
- 5/16” steel plate with bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with most control arms that are built to factory hub specifications
Rotor Features:
- Precision ground stainless steel rotors
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Features:
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
