High Lifter 7 Inch Big Lift Kit w| Axles - Polaris General 1000
Item #: or-2557
Brand: High Lifter
In Stock
- Description
- Specifications
- Installation Guides
- Reviews
NOTES:
- THIS ITEM ONLY SHIPS TO A COMMERCIAL ADDRESS AND REQUIRES A SIGNATURE UPON DELIVERY.
- Polaris General 1000 models - Factory Bushings will NOT work with BIG LIFT, you must purchase Bushing Kits BK-HLP-1 (Front) and BK-HL-P-2 (Rear). The installation of the Big Lift on the General requires the removal of the factory sway bar on the front.
- Polaris General models with Standard Shocks without reservoir, flip the shock to work with upper lift brackets and lower control arms.
- Polaris General models with Fox Style or reservoir shocks, proceed with installation as laid out in the instructions.
Applicability: 2016-23 Polaris General 1000 and General 4 1000
- THIS ITEM ONLY SHIPS TO A COMMERCIAL ADDRESS AND REQUIRES A SIGNATURE UPON DELIVERY.
- Polaris General 1000 models - Factory Bushings will NOT work with BIG LIFT, you must purchase Bushing Kits BK-HLP-1 (Front) and BK-HL-P-2 (Rear). The installation of the Big Lift on the General requires the removal of the factory sway bar on the front.
- Polaris General models with Standard Shocks without reservoir, flip the shock to work with upper lift brackets and lower control arms.
- Polaris General models with Fox Style or reservoir shocks, proceed with installation as laid out in the instructions.
Applicability: 2016-23 Polaris General 1000 and General 4 1000
2016-18 Polaris General Lift Kit Features:
2019-20 Polaris General Lift Kit Features:
Outlaw DHT XL Axle Features:
Outlaw RCV Axle Features:
- Heavy duty laser cut rear upper lift / shock relocation brackets
- Four custom heavy duty max clearance control arms crafted from 1 1/4" x 0.120 wall DOM tubing, heavy duty support gussets, and shock mounts
- Front and rear heavy duty High Lifter springs
- Four Outlaw RCV or DHT XL axles
- Additional brake line kit
- All required hardware and brackets
- Detailed instructions with step-by-step photos
2019-20 Polaris General Lift Kit Features:
- Heavy duty laser cut rear upper lift / shock relocation brackets
- Eight custom heavy duty max clearance control arms crafted from 1 1/4" x 0.120 wall DOM tubing, heavy duty support gussets, and shock mounts
- Four Outlaw RCV or DHT XL axles
- Custom tie rods with heim-style rod ends
- Custom rear brake line kit
- All required hardware and brackets
- Detailed instructions with step-by-step photos
Outlaw DHT XL Axle Features:
- Dual heat treatments on the housings to improve toughness against shock loads without compromising bearing surfaces and long term life
- Oversized CV joint housings to increase strength
- Housings and bars made from 4340 chromoly steel
- Puncture-resistant boots which are durable in high and low temperature climates
- Molybdenum disulfide, anti-oxidation, rustproof, and high-performance
- Proudly built and assembled in the USA

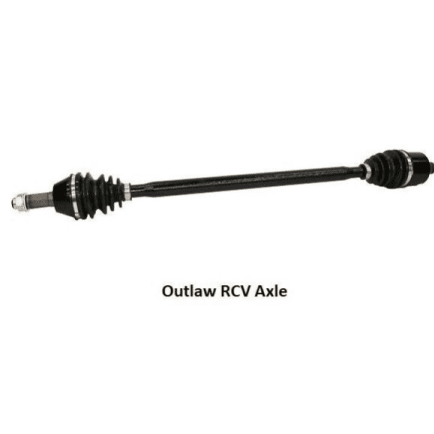

Outlaw RCV Axle Features:
- Uses the RCV Performances patented cage
- Sliding bars on both ends for increased angle capability
- Bars, housings, cages, and races made of high strength alloy steel
- Well established and proven design
- Proudly built and assembled in the USA
View PLK-X-RZR1S-2-B Installation Instructions View PLK-DXL-RZR1S-2-B and PLK-DXL-GEN1-3-B Instructions View PLK-X-GEN1-3-B Instructions View PLK-DXL-GEN1-4-B Instructions
