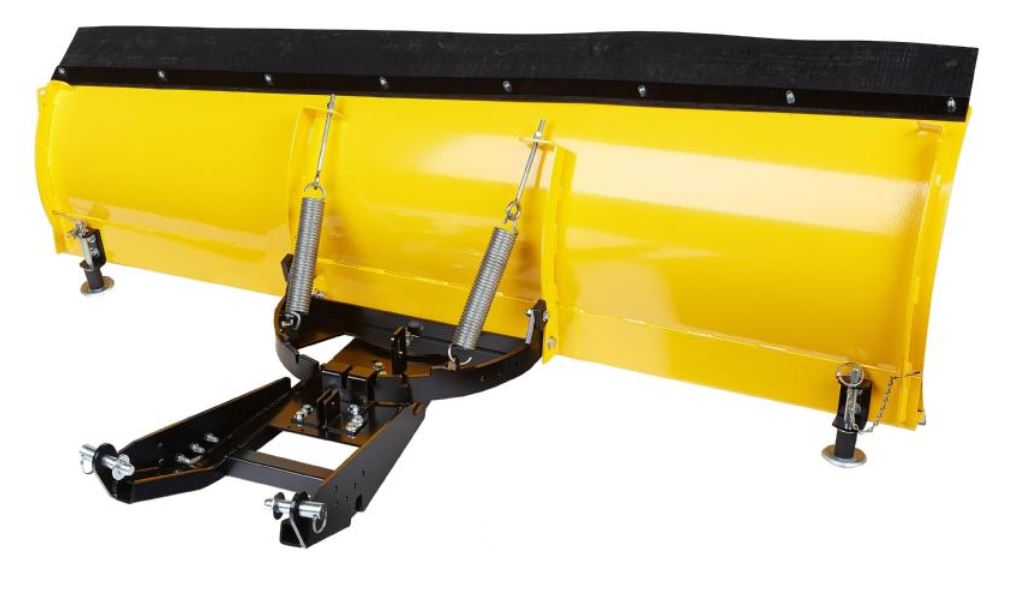

72 Inch Denali Pro Series Snow Plow Kit - Yamaha Rhino
Item #: or3_MA11724
Brand: Denali
In Stock
- Description
- Specifications
- Product Videos
- Reviews
NOTE: Must have a winch to use plow system.
Applicability: 2004-13 Yamaha Rhino 450 / Rhino 660 / Rhino 700
Kit Includes:
Applicability: 2004-13 Yamaha Rhino 450 / Rhino 660 / Rhino 700
Kit Includes:
- Blade
- Push tube
- Model specific plow mount
Blade Specifications:
Push Tube Specifications:
Plow Mount Specifications:
- U.S.A. made
- County-style blade with curved design made of 12 gauge steel
- Impact resistant reinforcement system disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact
- Includes edge stiffeners and stabilizer bar
- Sand blasted, powder coated with epoxy primer and TGIC polyester top coat for corrosion protection, UV resistance and durability

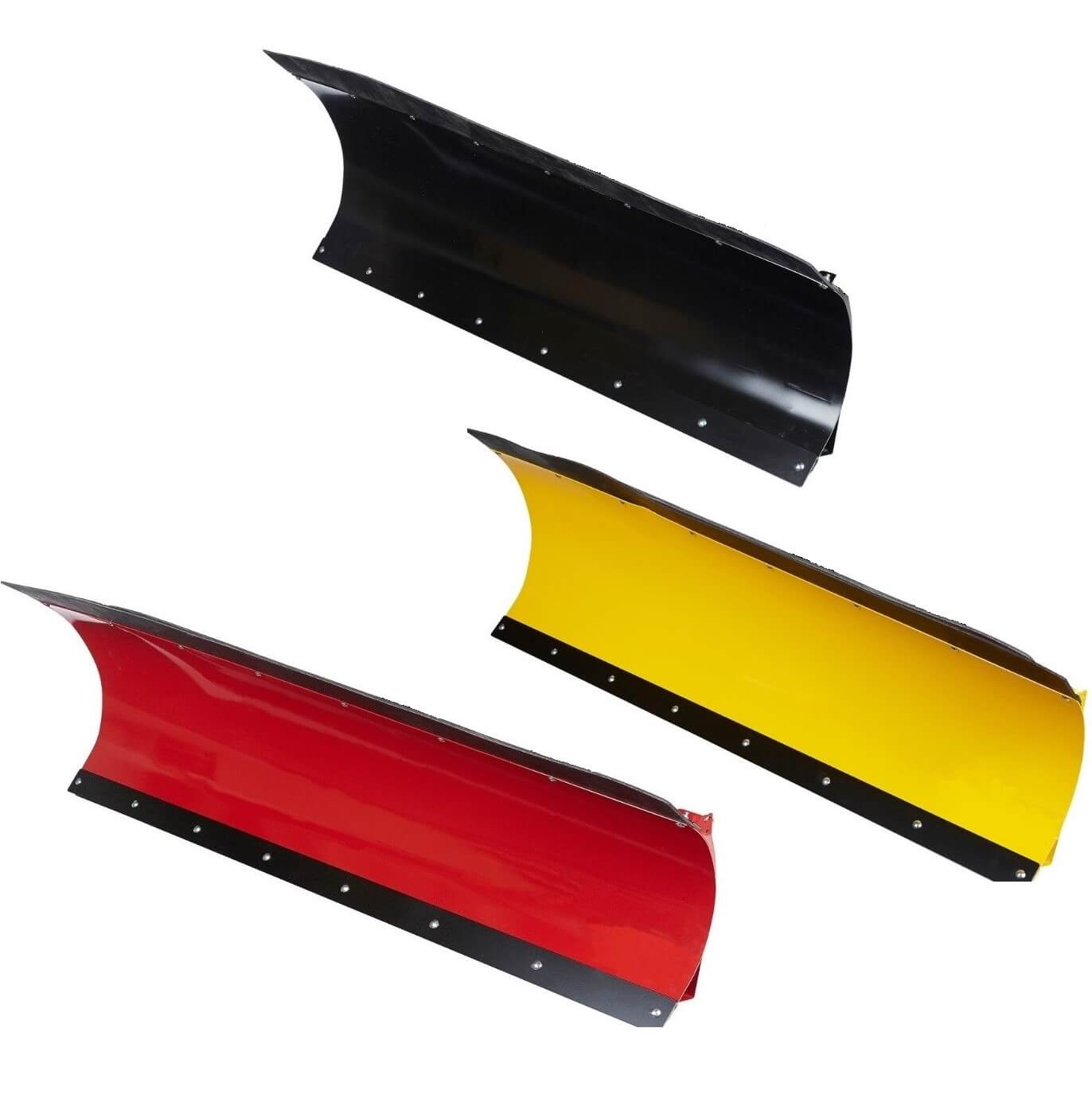

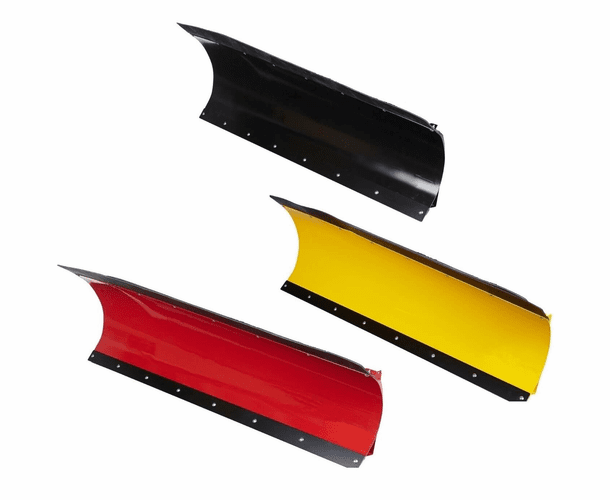

- Available in black, red or yellow
- High strength, high yield 3/16 inch thick grade 50 steel wear bar
- Angle blade is 23 inches on the tallest side and 16 inches on the shortest side
- Rubber flap stabilizer bar with upgraded (stiffer) rubber flap
- Plow markers included
- Height and angle adjustable premium steel skid feet
- Includes 3 year warranty on the plow blade against manufacturer defects
Push Tube Specifications:

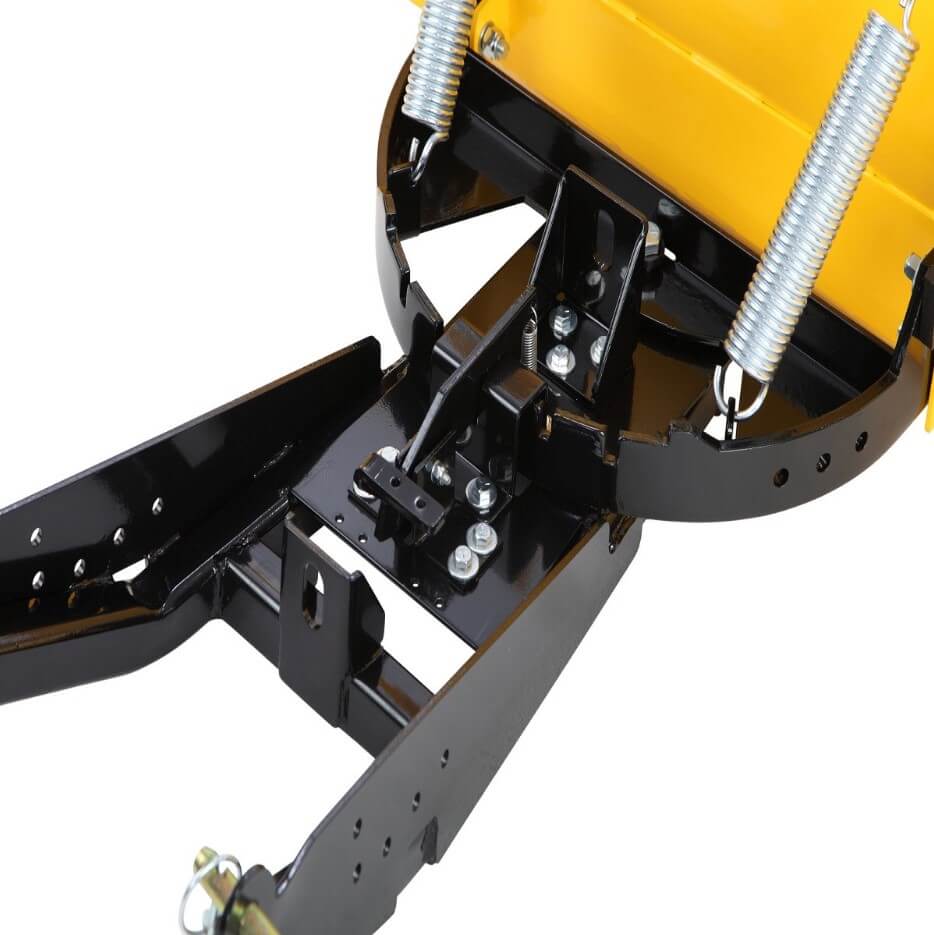

- Impact resistant reinforced pivot assembly
- Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees, 12.5 degrees and 25 degrees
- Simple detachment systems with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity

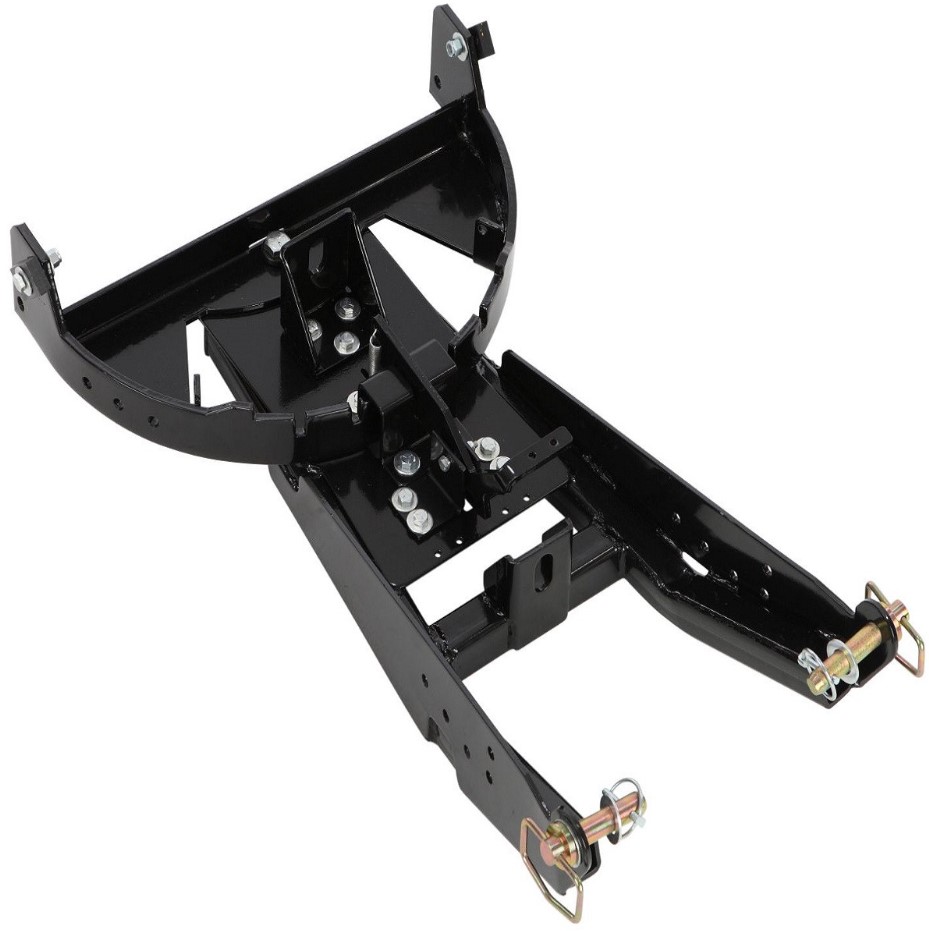

Plow Mount Specifications:
- Front mount
- 100% laser cut 1/4 inch steel
- Slotted holes allow blade to hug the ground
