60 Inch Denali Standard Series Snow Plow Kit - Kubota RTV 400 | 500 | 900 | 1100
Item #: or-1279
Brand: Denali
In Stock
- Description
- Specifications
- Reviews
NOTES:
- Must have a winch to use plow system.
- Does NOT fit Kubota RTV-X Series.
- Does NOT work with a 2" front receiver hitch installed.
Applicability: Fits
Kit Includes:
- Must have a winch to use plow system.
- Does NOT fit Kubota RTV-X Series.
- Does NOT work with a 2" front receiver hitch installed.
Applicability: Fits
- 2004-09 Kubota RTV 900 with 1-1/4" front hitch
- 2011-12 Kubota RTV 900 with new style rectangle tube bumper
- 2008-10 Kubota RTV 1100 with 1-1/4" front hitch
- 2011-12 Kubota RTV 1100 with new style rectangle tube bumper
- 2013-22 Kubota RTV 500 / 900 / 1100 with 1-1/4" front hitch
Kit Includes:

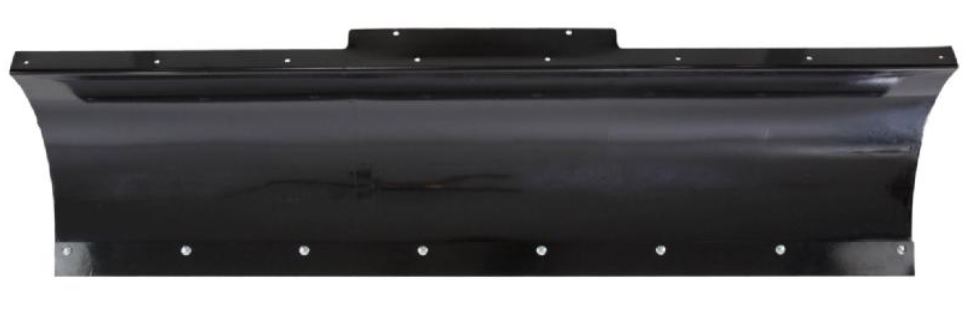

- Blade
- Push tube
- Model specific plow mount

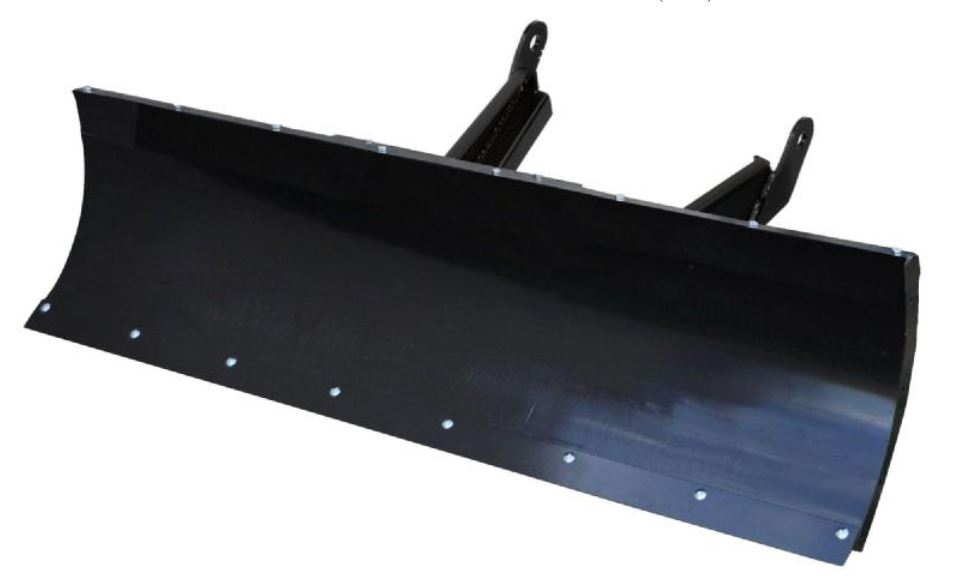

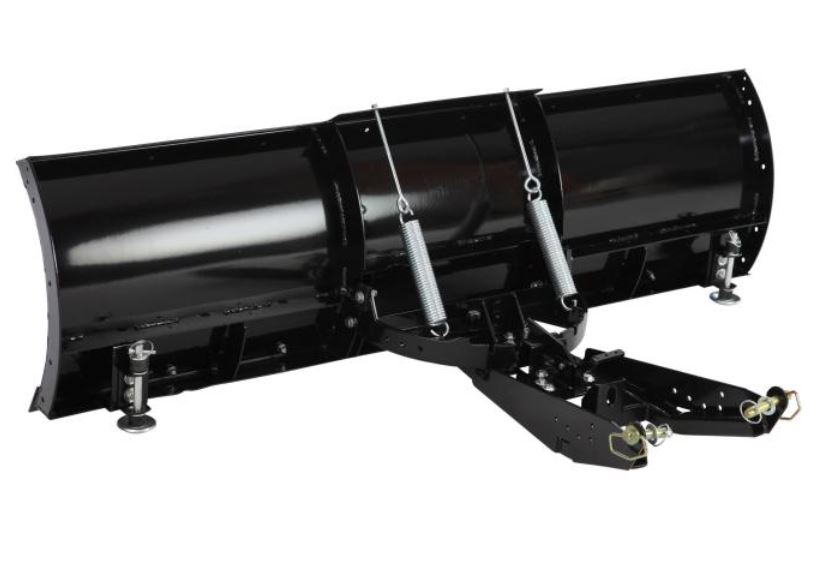

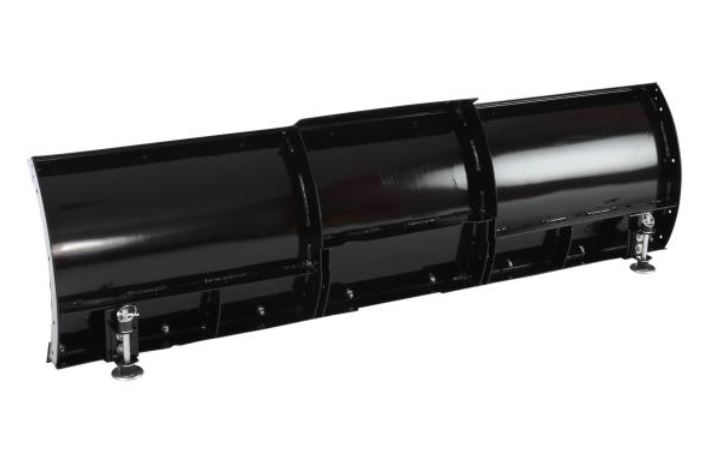

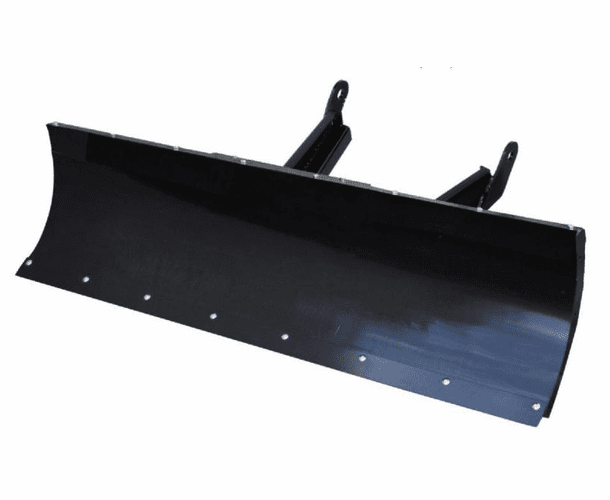

Blade Specifications:
Push Tube Specifications:
Plow Mount Specifications:
- 19" scoop
- 11 gauge steel leading horizontal supports
- Four 7 gauge ribs run the full length of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65 degree attack angle and over center design ensures snow rolls up and is thrown forward
- Replaceable 7 gauge, grade 50 steel wear bar
- Height and angle adjustable skid feet included
- Center mounted plow disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact
- 3 year warranty

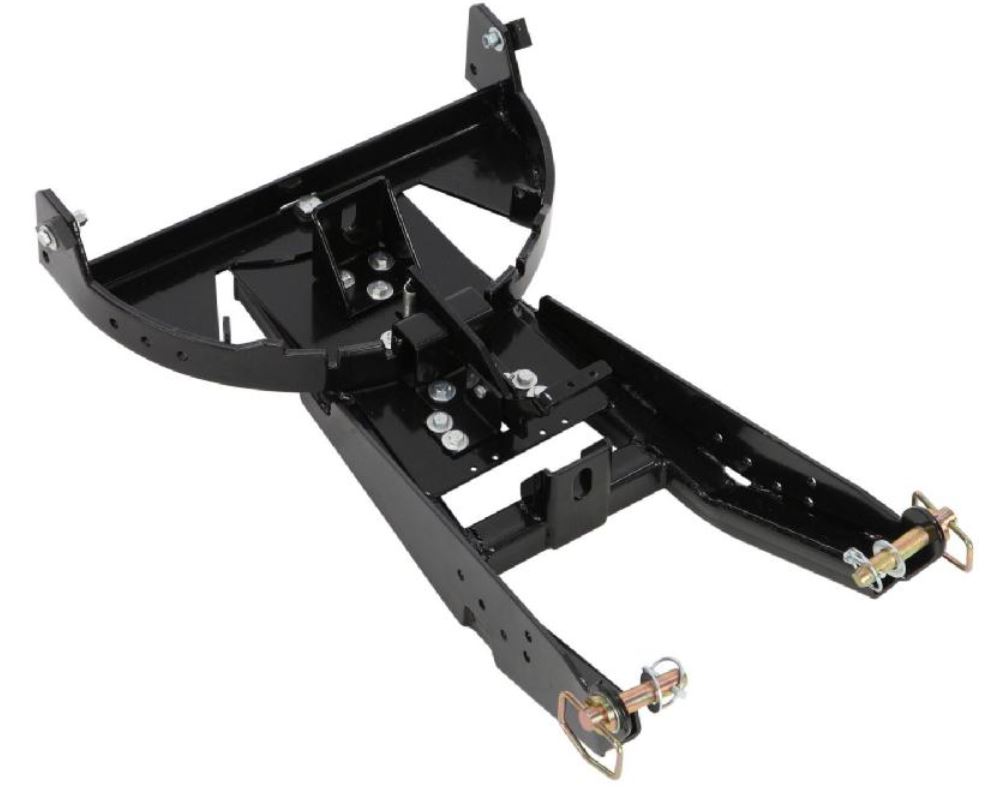

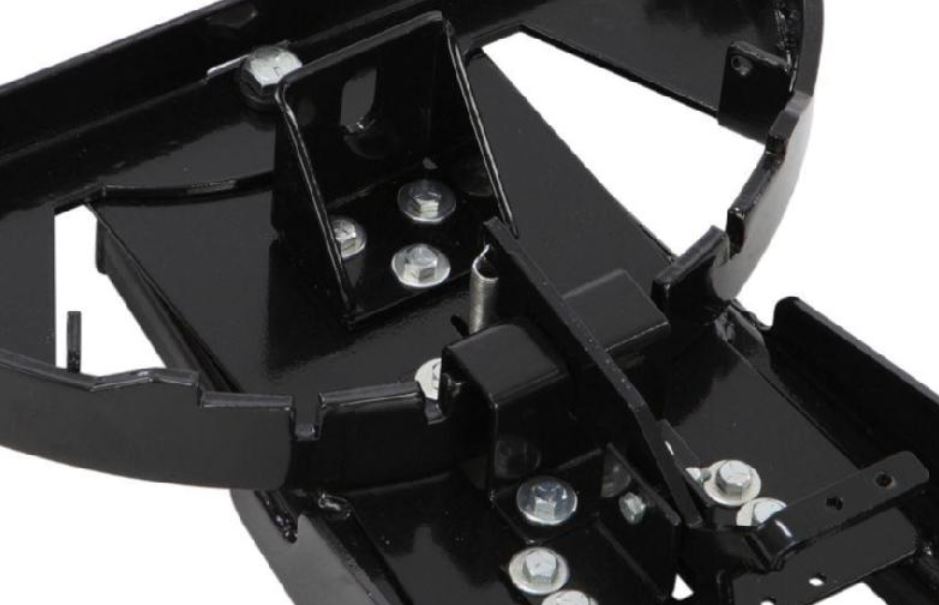

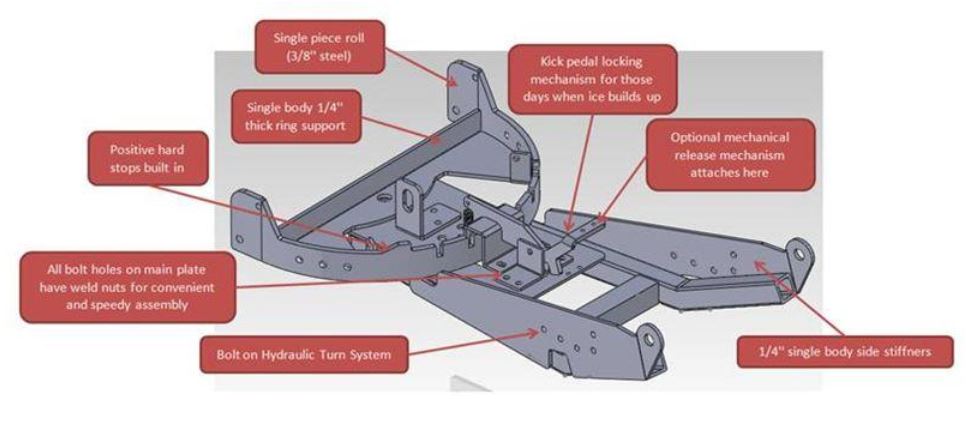

Push Tube Specifications:
- Impact resistant reinforced pivot assembly
- Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees, 12.5 degrees and 25 degrees
- Simple detachment systems with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity

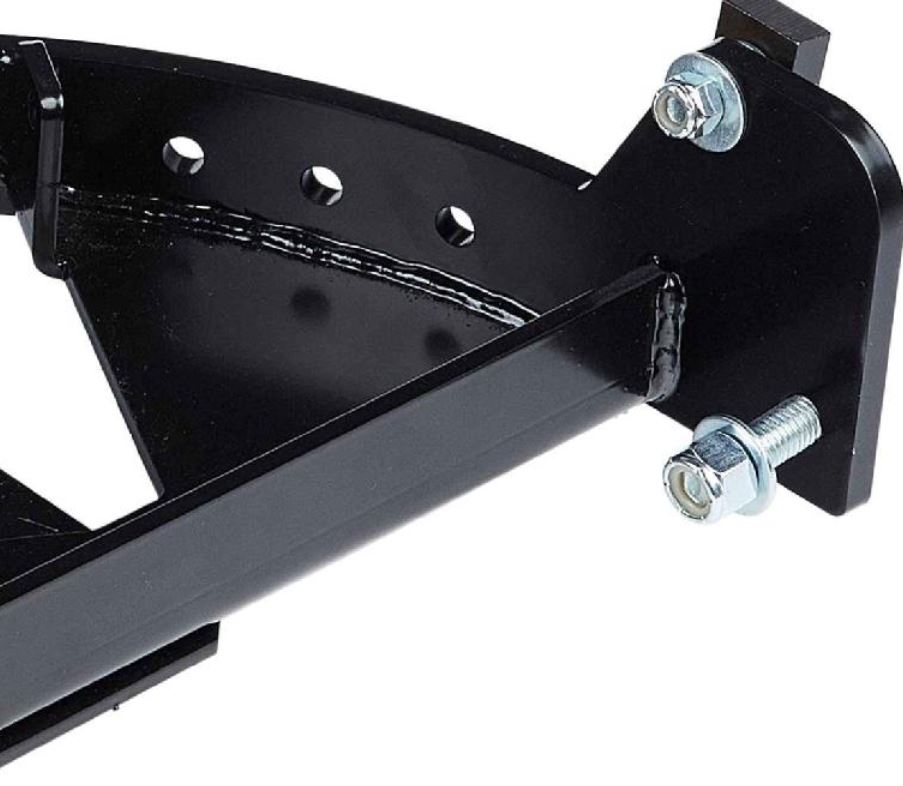

Plow Mount Specifications:
- Front mount
- 100% laser cut 1/4 inch steel
- Slotted holes allow blade to hug the ground
