54 Inch Gen II Eagle Straight Blade Snow Plow Kit - 2002-07 Suzuki Vinson 500
Item #: or-1984
Brand: Eagle Plow
In Stock
- Description
- Specifications
- Reviews
Applicability: 2002-07 Suzuki Vinson 500
Kit Includes:
Kit Includes:
- Blade
- Push tube
- Model specific plow mount
Straight Blade Features:
Push Tube Features:
Plow Mount Features:

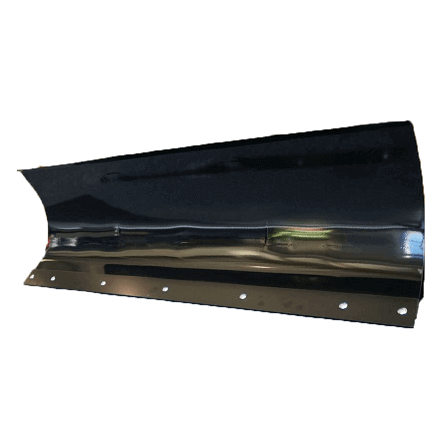

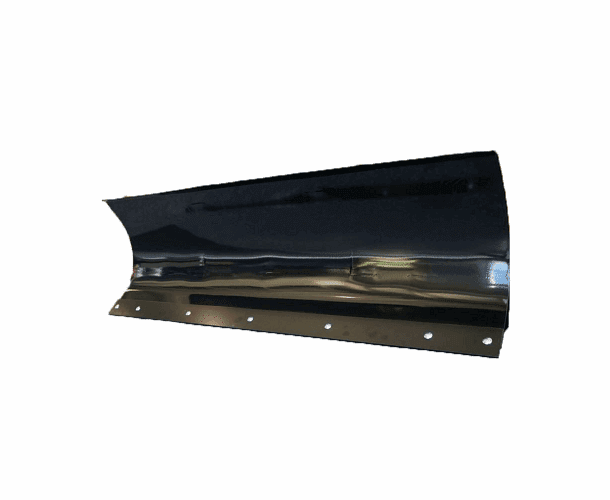

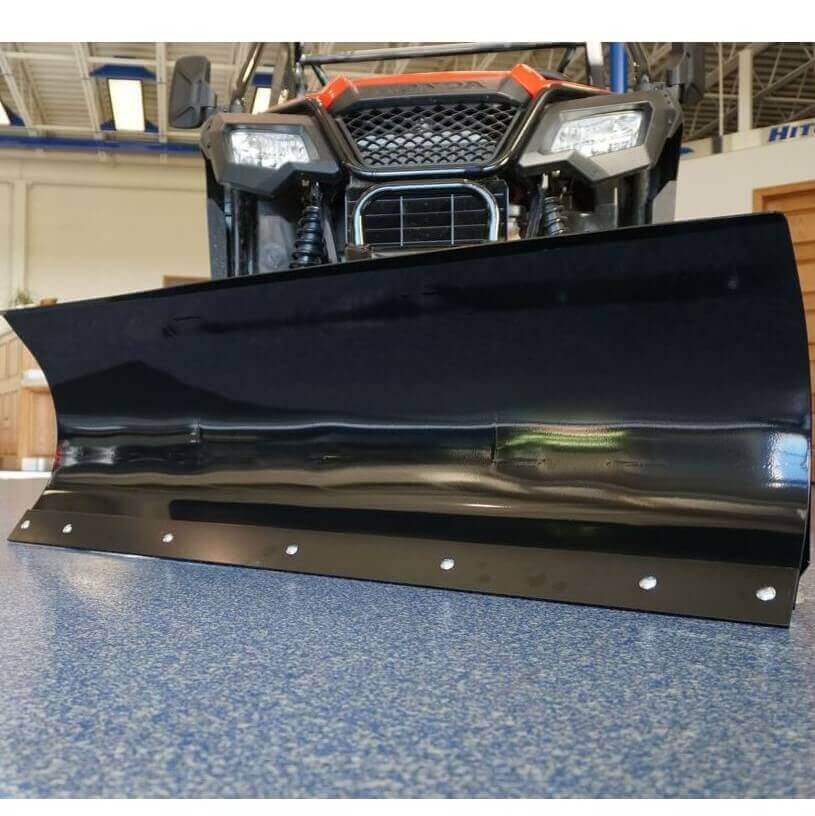

- 54 inches wide and 15.75 inches tall for angled cut width of 47.25 inches
- Tough, heavy duty wear bar is reversible and replaceable
- Manually adjusts to 5 blade positions side to side
- Adjustable, bolt-on blade stops offer 4 blade pitch positions
- Use the adjustable skid shoes with spacers to protect the blade and surface
- Blade mounts to the push tube swivel with 1/2” bolts
- Comes with trip springs and eye bolts for added blade plowing protection

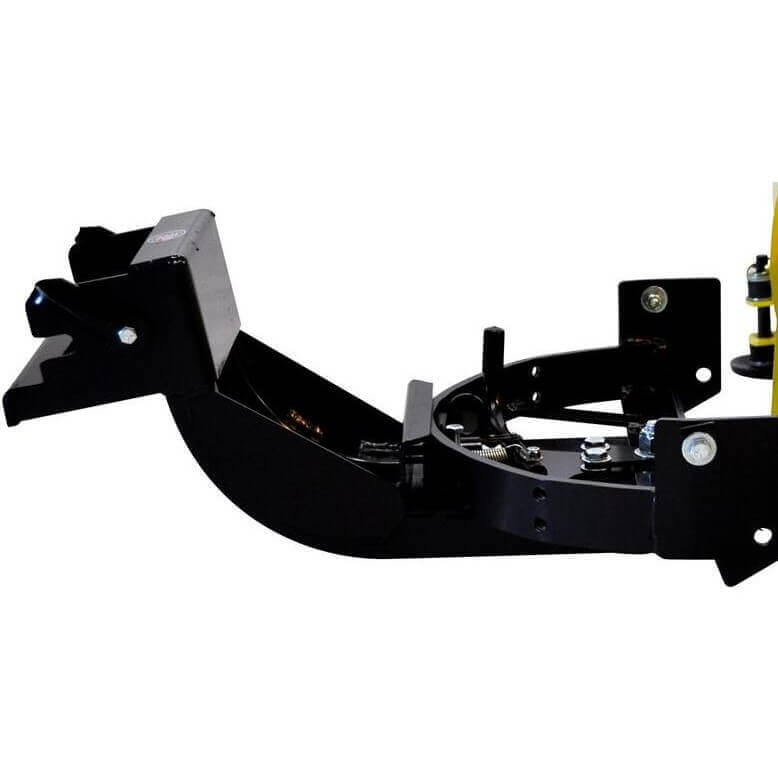

Push Tube Features:
- Manufactured from 1-1/2” high strength square tubing
- Attaches in seconds with the Quick-Latch brackets and locks in place
- V-shaped design and cross bars for increased stability
- Swivel adjust to 5 positions offering 30° of rotation to each side
- Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
- Powder coated jet black
Plow Mount Features:
- Front mount
- Quick-Latch pins offer instant engaging and disengaging
- Some mounts recommended to be removed in off-season to maintain ground clearance
- Powder coated jet black
