54 Inch Eagle Straight Blade Snow Plow Kit - 2000-21 Honda Rancher
Item #: or-1786
Brand: Eagle Plow
In Stock
- Description
- Specifications
- Reviews
NOTE: Must have a winch to use plow system.
Applicability: 2000-21 Honda Rancher (See options above)
Kit Includes:
Applicability: 2000-21 Honda Rancher (See options above)
Kit Includes:
- Blade
- Push tube
- Universal push tube mount
- Model specific plow mount
Straight Blade Features:
Push Tube Features:
Universal Push Tube Mount Features:
Plow Mount Features:

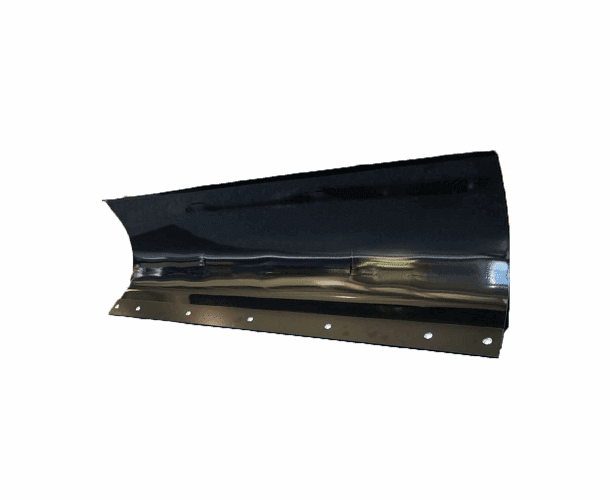

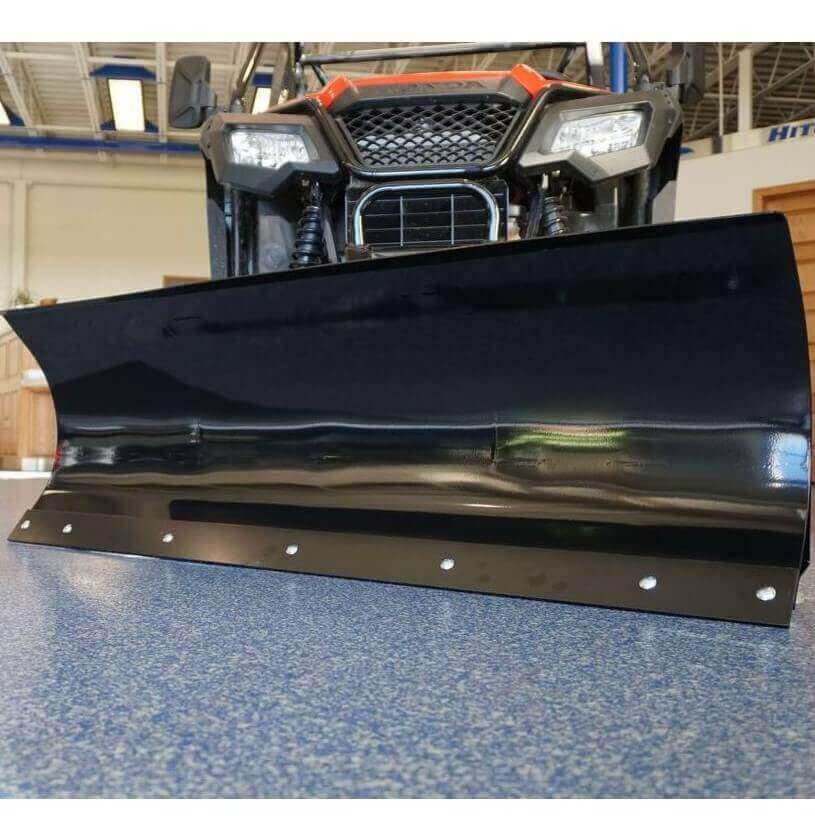

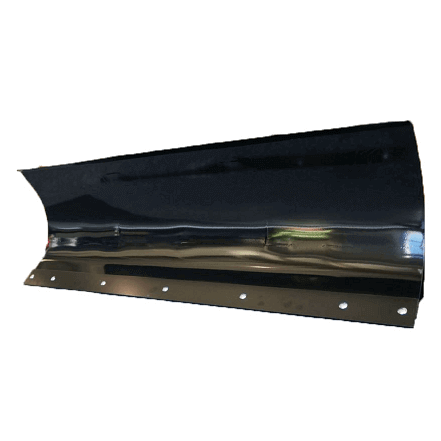

- 54 inches wide and 15.75 inches tall for angled cut width of 47.25 inches
- Tough, heavy duty wear bar is reversible and replaceable
- Manually adjusts to 5 blade positions side to side
- Adjustable, bolt-on blade stops offer 4 blade pitch positions
- Use the adjustable skid shoes with spacers to protect the blade and surface
- Blade mounts to the push tube swivel with 1/2 bolts
- Comes with trip springs and eye bolts for added blade plowing protection
Push Tube Features:
- Manufactured from 1-1/2 high strength square tubing
- Attaches in seconds with the Quick-Latch brackets and locks in place
- V-shaped design and cross bars for increased stability
- Swivel adjust to 5 positions offering 30° of rotation to each side
- Swivel rotates on a heavy duty 5/8 bolt mounted to 1/4 solid steel
- Powder coated jet black
Universal Push Tube Mount Features:
- Offers pins for instant engaging and disengaging of plow system with the Quick-Latch Brackets
- Made from 10-gauge steel and attaches with provided grade 5 carriage bolts
- Removable after the season and replaceable
- Powder coated jet black

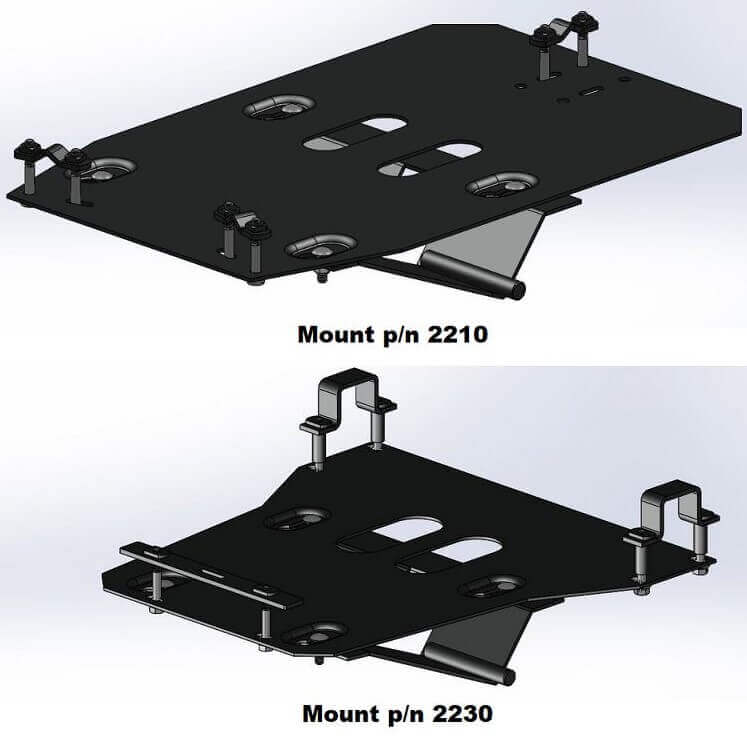

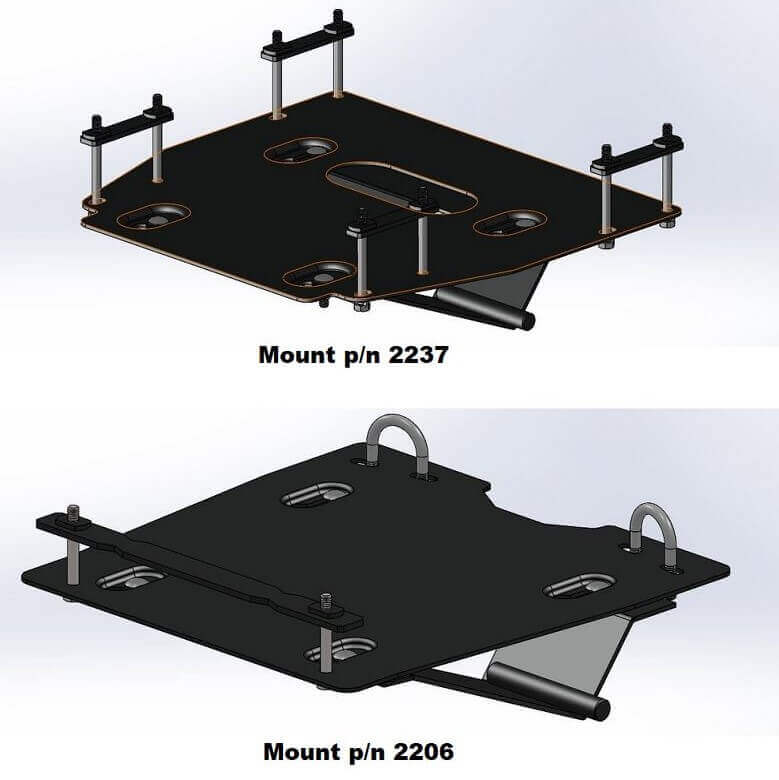

Plow Mount Features:
- Mid mount
- Can stay on year-round and acts as a steel, skid plate
- Wont affect oil changing or ground clearance
- Made from 11-gauge steel and attaches with provided hardware
- Powder coated jet black
